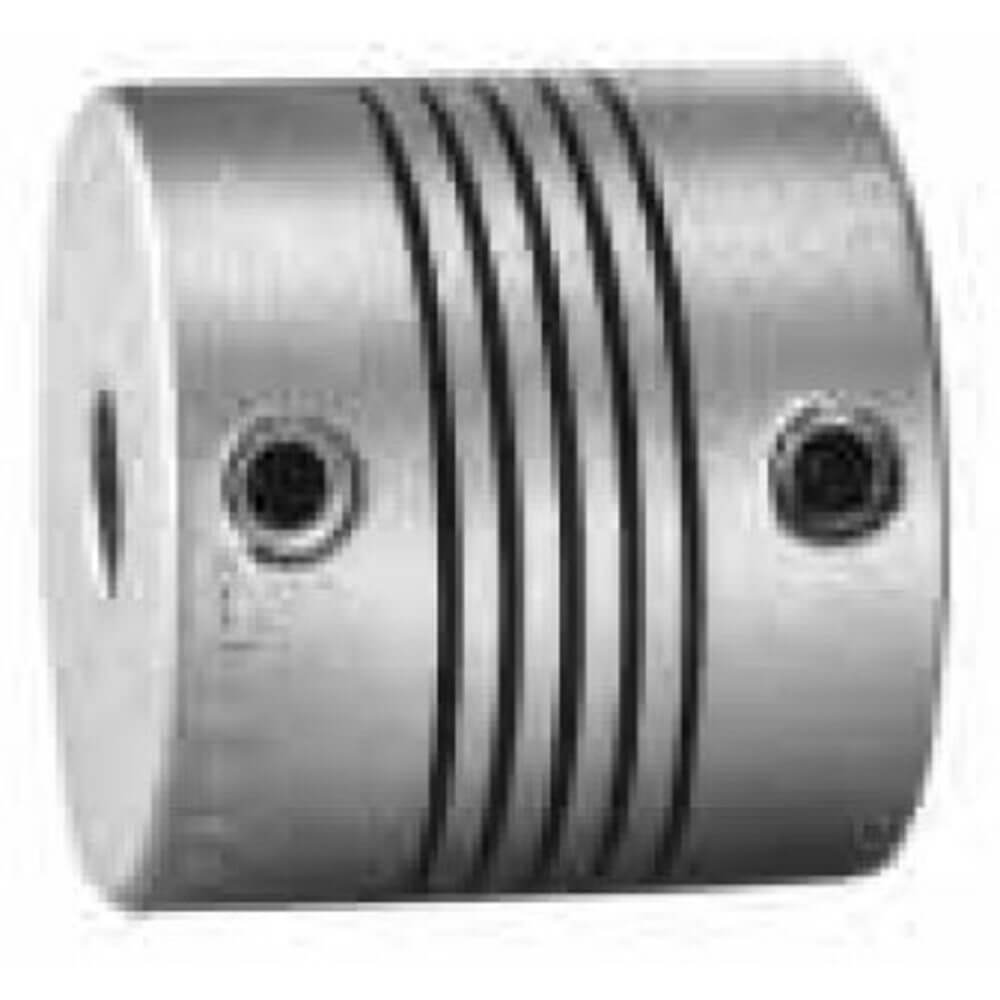

LOVEJOY 68514456684 Motion Control Coupling, 11 Inch Lbs Torque, 0.984 Inch Dia., 86.80 Lbs Inch Sq. Inertia
Get it by Tuesday, Aug 25
€127.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motion Control Coupling |
| Axial Misalignment | -0.01" to +0.01" |
| Bore Size | 8 mm |
| Bore Type | Bored |
| Coupling Size | ES100 |
| Coupling Type | Single Beam Coupling |
| Coupling Weight | 30g |
| Coupling Weight (lb.) | 30 g |
| Finish | Anodized |
| Hub Material | Aluminum |
| Keyway | Without Keyway |
| Length Through Bore | 7 mm |
| Max. Angular Misalignment | 5° |
| Max. Bore Dia. | 10 mm |
| Max. Operating Temp. | 200°F |
| Max. Speed | 10000 RPM |
| Min. Bore | 6 mm |
| Moment Of Inertia | 86.8 lbs.-sq. in. |
| Nominal Torque | 11 lbs.-in. |
| Outside Dia. | 25 mm |
| Overall Length | 25 mm |
| Parallel Misalignment | 0.005" |
| Product Datasheet | lovejoy-68514456618.pdf |
| Series | ES Series |
| Set Screw Size | M3 |
| Style | Set Screw |
| System Of Measurement | Metric |
| Torsional Stiffness | 286.5 lbs.-in./rad |
| Volume | 0.95276 cu. in. |
Shipping Info:
| Ship height (cm) | 2.5 |
| Ship length (cm) | 2.49 |
| Ship width (cm) | 2.49 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Coupling Size | Bore Size | Nominal Torque | Length Through Bore | Max. Bore Dia. | Set Screw Size | Torsional Stiffness | Moment Of Inertia | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 68514456682 | ES100 | 6 mm | 11 lbs.-in. | - | - | - | - | - | €127.05 | |
| 68514456666 | ES050 | 3 mm | 1.8 lbs.-in. | 3 mm | 4.77 mm | M2.5 | 42.8 lbs.-in./rad | 2.73 lbs.-sq. in. | €98.12 | |
| 68514456670 | ES075 | 4 mm | 5 lbs.-in. | 5 mm | 6 mm | M3 | 119.4 lbs.-in./rad | 20.16 lbs.-sq. in. | €100.24 | |
| 68514456672 | ES075 | 5 mm | 5 lbs.-in. | 5 mm | 6 mm | M3 | 119.4 lbs.-in./rad | 20.16 lbs.-sq. in. | €100.24 | |
| 68514456674 | ES075 | 6 mm | 5 lbs.-in. | 5 mm | 6 mm | M3 | 119.4 lbs.-in./rad | 20.16 lbs.-sq. in. | €100.24 | |
| 68514456686 | ES100 | 10 mm | 11 lbs.-in. | 7 mm | 10 mm | M3 | 286.5 lbs.-in./rad | 86.8 lbs.-sq. in. | €127.05 | |
| 68514456694 | ES112 | 10 mm | 17 lbs.-in. | 7 mm | 12 mm | M5 | 409.3 lbs.-in./rad | 148.99 lbs.-sq. in. | - | RFQ
|
