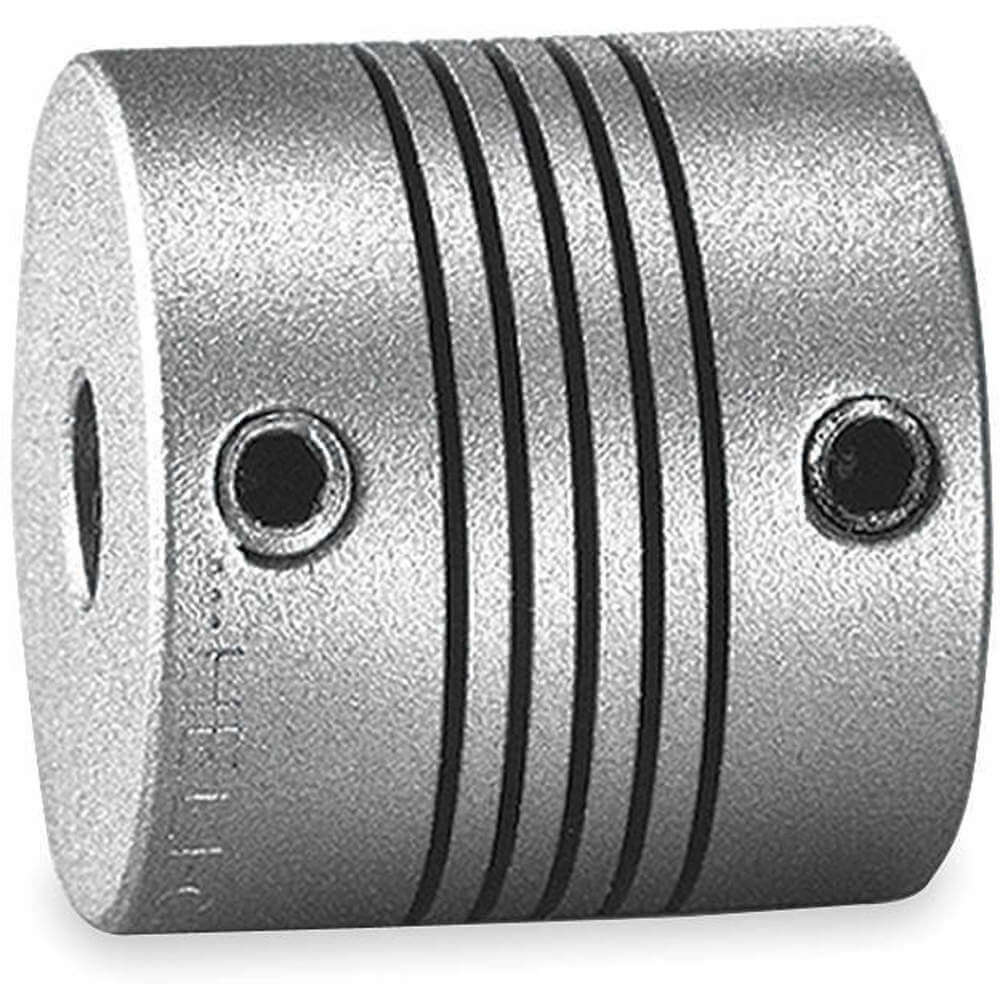

LOVEJOY 68514456626 Single Beam Coupling, 1/4 x 1/4 In Bore
Get it by Tuesday, Feb 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motion Control Coupling |
| Angular Misalignment | 5° |
| Axial Misalignment | -0.01" to +0.01" |
| Bore A | 1/4" x 1/4" |
| Bore B | 1/4" x 1/4" |
| Bore Dia. | 1/4" x 1/4" |
| Bore Type | Bored |
| Coupling Size | ES075 |
| Coupling Type | Single Beam |
| Finish | Anodized |
| Hub Dia. | 0.748" |
| Hub Material | Aluminum |
| Keyway | Without Keyway |
| Length Through Bore | 5 mm |
| Material | Anodized Aluminum |
| Max. Angular Misalignment | 5° |
| Max. Axial Misalignment (in.) | -0.01" to +0.01" |
| Max. Bore | 681153 |
| Max. Bore Dia. | 0.236" |
| Max. Parallel Misalignment | 0.005" |
| Max. Speed | 10000 RPM |
| Max. Temp. Range | 200 |
| Min. Bore | 0.157" |
| Nominal Torque | 5 lbs.-in. |
| Outside Dia. | 0.748" |
| Overall Length | 3/4" |
| Parallel Misalignment | 0.005" |
| Product Datasheet | lovejoy-68514456618.pdf |
| Screw Size | M4 |
| Screw Type | Set Screw |
| Setscrew Location | 0.1 |
| Size | ES075 |
| Style | Single Beam Set Screw |
| System Of Measurement | Imperial |
| Torque | 5 lbs.-in. |
Shipping Info:
| Ship height (cm) | 1.9 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 1.91 |
| HS code | 8483608000 |
| Country of Origin | US |
