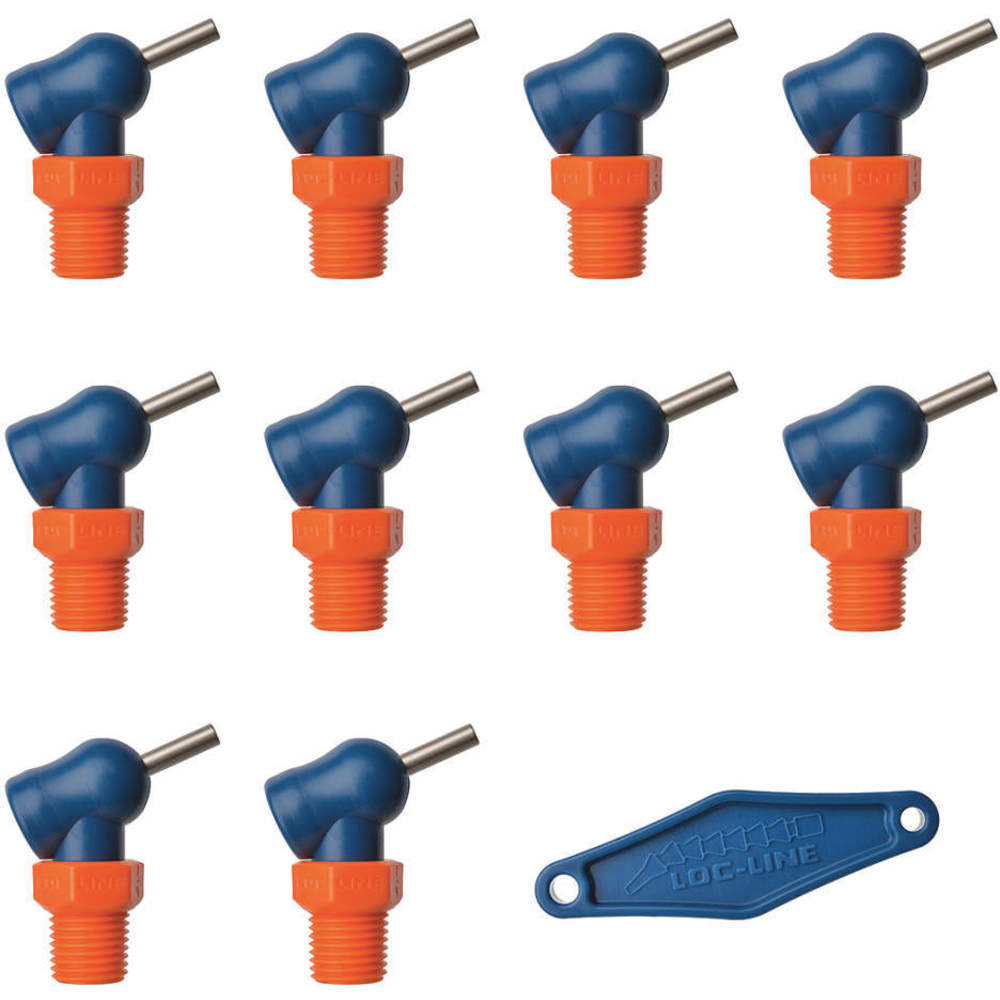

LOC-LINE 79090 Nozzle XR Style 0.117 Inch Diameter
Item: AH7QAKModel: 79090Cross Ref: 36XP64
7 In Stock
Ships within 2 days via
10.00% off
€319.38 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | High Pressure Nozzle |
| Available In | Black, Blue/Orange, Gray |
| Body Material | Acetal |
| Color | Blue, Orange |
| Compatible Lubricants | Acetone, Alcohol, Dish Detergents, Ethyl, Gasoline, Grease Lacquer Solvents, Oils, Sodium Hydroxide |
| Compatible Media | Acetone, Alcohol, Dish Detergents, Ethyl, Gasoline, Grease Lacquer Solvents, Oils, Sodium Hydroxide |
| Connection Type | Threaded |
| For Use With | Lathes, Mills, Grinders And High Pressure Applications Up To 1000 Psi |
| Hole Dia. | 0.117" |
| Hole Diameter | 0.12" |
| Includes | Adjustment Lever |
| Material | Acetal, Stainless Steel |
| Material Of Construction | Acetal, Stainless Steel |
| Max. Pressure | 1000 psi |
| Pressure Rating - Maximum | 1000 psi |
| Product Type | Xr Style Nozzle |
| Reach | 1/2" |
| Resistance Properties | Corrosion Resistant, Water Resistant |
| Swing | 110° |
| Swing | 110 Degrees |
| Swing Angle - Maximum | 110° |
| Temperature Rating - Maximum | 115°F |
| Thread Size | 1/4" |
| Tip Material | Stainless Steel |
| Type | XR Style |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Details:
- Available In : Blue,Orange, Black, Gray
Product Variants
| Product | Model | Hole Dia. | Color | Available In | Type | Thread Size | Reach | Material | Max. Pressure | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
72082 | 0.062" | Blue, Orange | Blue/Orange | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 2 | €81.94 | |
 |
72086 | 0.086" | Blue, Orange | Blue/Orange | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 2 | €82.10 | |
 |
72090 | 0.117" | Blue, Orange | Blue/Orange | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 2 | €80.32 | |
 |
72094 | 4/25" | Blue, Orange | Blue/Orange | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 2 | €82.93 | |
 |
79082 | 0.062" | Blue, Orange | Blue, Orange | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 10 | €330.32 | |
 |
79082-BLK | 0.062" | Black | Black | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 10 | €333.47 | |
 |
79082-G | 0.062" | Gray | Gray | XR Style | 1/4" | 1/2" | Acetal, Stainless Steel | 1000 psi | 10 | €355.93 |
