LLAMBRICH USA JK 16 R-5/8 Keyless Drill Chuck 0.630 In
Item: AD8PHNModel: JK 16 R-5/8Cross Ref: 4LHF1
7 In Stock
Ships within 2 days via
5.00% off
€382.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill Chuck |
| Accessory Type | Medium Duty |
| Bearing Type | Plain |
| Capacity Min. | 0.118" |
| Chuck Diameter | 2.02" |
| Chuck Type | Keyless |
| Closed Length | 4.14" |
| Compatible Tool Type | Portable Drilling Machines |
| Construction | Steel |
| Drill Bit Shank Capacity (decimal Equivalent) | 0.125 to 0.625 |
| Drill Bit Shank Capacity (fractional Inch) | 1/8" to 5/8" |
| Features | Self-Tightening Mechanism Automatically Increases The Clamping Forces In Proportion To The Increase In Torque During The Drilling Operation |
| For Max. Drill Bit Shank Size | 5/8" |
| For Min Drill Bit Shank Size | 1/8" |
| For Use With | Portable Drilling Machines |
| Keying | Keyless |
| Material | High Speed Steel |
| Material-machining | High Speed Steel |
| Max. Capacity | 0.63" |
| Max. Drill Capacity | 5/8" |
| Min. Capacity | 0.118" |
| Min. Drill Capacity | 1/8" |
| Mounting Size | 5/8"-16 |
| Mounting Type | Internal Thread |
| Nominal Capacity | 5/8" |
| Open Length | 3.73" |
| Overall Length | 4.134" |
| Product Type | Drill Chuck |
| Series | JK-SOLID Series |
| Turn Direction | CW |
| Type | Medium Duty |
Shipping Info:
| Ship weight (kg) | 1.14 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 6.35 |
| HS code | 8466100175 |
| Country of Origin | ES |
Product Variants
| Model | Material | Mounting Size | Mounting Type | Max. Capacity | Min. Capacity | Drill Bit Shank Capacity (fractional Inch) | For Max. Drill Bit Shank Size | Drill Bit Shank Capacity (decimal Equivalent) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

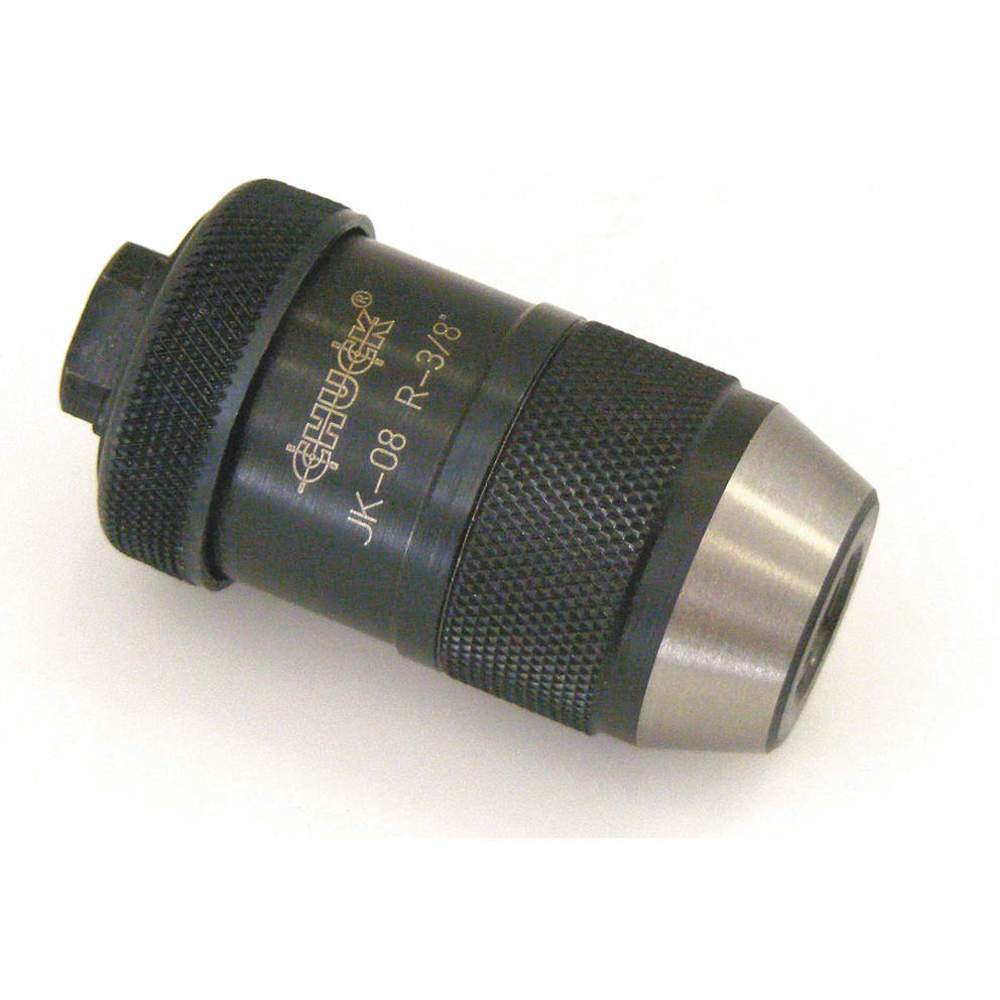

| JK 08 R-3/8 | High Speed Steel | 3/8"-24 | Internal Thread | 0.315" | 0.0" | 1/32" to 5/16" | 5/16" | 0.0312 to 0.3125 | €229.49 | |
| JK 08 J-1 | Steel | 1JT | Internal Jacobs Taper | 0.315" | 0.0" | 1/32" to 5/16" | 5/16" | 0.0312 to 0.3125 | €290.48 | |
| JK 08 J-2S | Steel | 2JT | Internal Jacobs Taper | 0.315" | 0.0" | 1/32" to 5/16" | 5/16" | 0.0312 to 0.3125 | €290.48 | |
| JK 10 R-3/8 | High Speed Steel | 3/8"-24 | Internal Thread | 0.394" | 0.0" | 1/32" to 3/8" | 3/8" | 0.0312 to 0.375 | €292.11 | |
| JK 10 R-1/2 | High Speed Steel | 1/2"-20 | Internal Thread | 0.394" | 0.0" | 1/32" to 3/8" | 3/8" | 0.0312 to 0.375 | €290.85 | |
| JK 10 J-2 | Steel | 2JT | Internal Jacobs Taper | 0.394" | 0.0" | 1/32" to 3/8" | 3/8" | 0.0312 to 0.375 | €297.76 | |
| JK 13 R-3/8 | High Speed Steel | 3/8"-24 | Internal Thread | 0.512" | 0.039" | 1/16" to 1/2" | 1/2" | 0.0625 to 0.5 | €321.31 |
