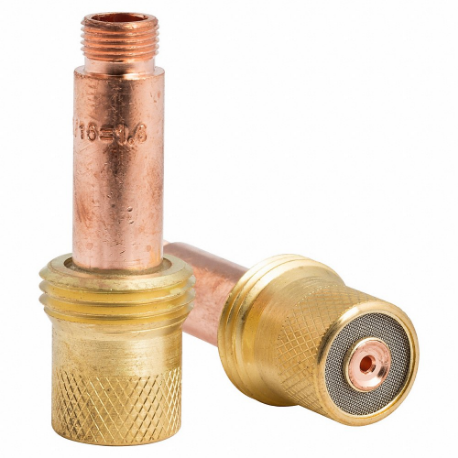

LINCOLN ELECTRIC KP4754-116 Gas Lens, 1/16 Inch Max Electrode Dia
Item: CR9LMWModel: KP4754-116Cross Ref: 61VA33
7 In Stock
Ships within 2 days via
5.00% off
€40.62 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Lens |
| Compatible With Brand | Lincoln |
| For Electrode Shape | Round |
| For Max. Electrode Dia. | 0.0625" |
| For Tig Torch Model | 17, 17F, 17FV, 17FVB, 17HP, 17HPV, 17V, 18, 18-90, 18HP, 18P, 18V, 26, 26F, 26FV, 26FVB, 26HP, 26HPV, 26V, 301525, 301526, CS410A, HW-17, HW-17F, HW-17R, HW-26, HW-26F, HW-26R, PTA-17, PTA-17F, PTA-17FV, PTA-17V, PTA-26, PTA-26F, PTA-26FV, PTA-26V, PTW-18, WP-17, WP-17F, WP-17FV, WP-17-PSH, WP-17V, WP-17V-PSH, WP-18, WP-18V, WP-26, WP-26F, WP-26FV, WP-26V, WP-R17F, WP-R17FV, A35HP, WP-R26F, WP-R26FV |
| For Tig Torch Series | 17, 18, 26, A-150, A-200, A-250, HW-17, HW-26, PTA-17, A35HP, PTA-26, PTW-18, W-350, W-410 |
| Material | Copper Alloy |
| Process | TIG Welding |
| Reference Number | 45V25 |
| Tig Torch Application | Gas Lens |
| Tig Torch Setup | Gas Lens |
| Type | Gas Lens |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | For Max. Electrode Dia. | Reference Number | For Tig Torch Series | Material | Type | Process | Tig Torch Setup | For Electrode Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KP4754-020 | 0.02" | 45V29 | 17, 18, 26, A-150, A-200, A-250, HW-17, HW-26, PTA-17, A35HP, PTA-26, PTW-18, W-350, W-410 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €45.41 | |
 |
KP4753-020 | 0.02" | 45V41 | 9, 20, A-125, HW-9, HW-20, HW-25, PTA-9, 22A, PTW-20, 22B, W-200, W-225, W-250, W-280, W-310, W-375 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €41.89 | |
 |
KP4754-040 | 1/25" | 45V24 | 17, 18, 26, A-150, A-200, A-250, HW-17, HW-26, PTA-17, A35HP, PTA-26, PTW-18, W-350, W-410 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €42.76 | |
 |
KP4753-040 | 1/25" | 45V42 | 9, 20, A-125, HW-9, HW-20, HW-25, PTA-9, 22A, PTW-20, 22B, W-200, W-225, W-250, W-280, W-310, W-375 | - | - | TIG Welding | Gas Lens | - | €39.43 | |
 |
KP4753-116 | 0.0625" | 45V43 | 9, 20, A-125, HW-9, HW-20, HW-25, PTA-9, 22A, PTW-20, 22B, W-200, W-225, W-250, W-280, W-310, W-375 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €39.43 | |
 |
KP4754-18 | 1/8" | 45V27 | 17, 18, 26, A-150, A-200, A-250, HW-17, HW-26, PTA-17, A35HP, PTA-26, PTW-18, W-350, W-410 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €42.76 | |
 |
KP4753-18 | 1/8" | 45V45 | 9, 20, A-125, HW-9, HW-20, HW-25, PTA-9, 22A, PTW-20, 22B, W-200, W-225, W-250, W-280, W-310, W-375 | Copper Alloy | Gas Lens | TIG Welding | Gas Lens | Round | €39.43 |
