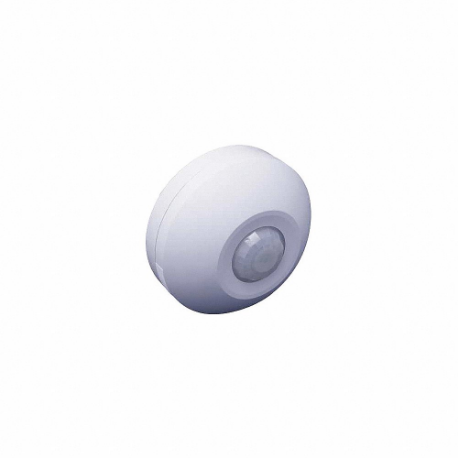

LEVITON ODC0S-I7W Line Voltage Ceiling Mount Occupancy Sensors, 277 VAC, Passive Infrared Sensor, 530 sq-ft Coverage
Item: CR9HEJModel: ODC0S-I7WCross Ref: 791DL9
7 In Stock
Ships within 2 days via
5.00% off
€164.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motion Sensor |
| Application | Storage Areas, Copy Rooms, Small Bathrooms, Utility Closets, Retrofit, Small Spaces Without Wall Switches |
| Color | White |
| Communication Method | Hard Wired |
| Coverage | 530 sq. ft. |
| Coverage Angle | 360° |
| Frequency | 60 Hz |
| Grade | Commercial |
| Height Above Surface | 2.15" |
| Includes | (2) #8-32X1-1/2" Screw, (2) Wire Connector |
| Installation Location | Ceiling |
| Installation Location (motion Sensor) | Ceiling |
| Lighting Technology | Fluorescent, Incandescent |
| Load Rating | Incandescent- 1000 W, Fluorescent- 2700 VA |
| Load Rating @ 120v Ac | 1000V (Incandescent), 2, 700 VA(Fluorescent) |
| Load Rating @ 277v Ac | 1000 W (Incandescent), 2700 VA (Fluorescent) |
| Manufacturer Warranty | 5 yrs. Limited |
| Max. Capacity @ 277vac | 1000 W (Incandescent), 2700 VA(Fluorescent) |
| Maximum Coverage Area | 530 sq. ft. |
| Maximum Mounting Height | 10 ft. |
| Maximum Operating Temperature | 122°F |
| Maximum Time Delay | 15 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 20 sec. |
| Mounting Type | Ceiling Mount |
| Neutral Wire Connection | Required |
| Operating Temp. | 32°F to 122°F |
| Operating Voltage | 277V AC |
| Overall Height | 2.15" |
| Overall Width | 4.3" |
| Pattern | 360° |
| Power Consumption | 1.89 W |
| Product Datasheet | leviton-odc0s-i7w.pdf |
| Relative Humidity | 20% to 90% Non Condensing |
| Sensing Technology | Passive Infrared |
| Sensor Operation | Occupancy, Photocell |
| Sensor Technology | PIR |
| Sensor Type | Occupancy |
| Standards | Cec Title 20/24 Complaint |
| Storage Temp. | 14°F to 185°F |
| Suggested Mounting Height | 8 ft. to 10 ft. |
| Time Delay | 20 sec. to 15 min. |
| Voltage | 277V AC |
| Voltage Type | Line Voltage |
| Width | 4.3" |
| Wiring | Line Black, Neutral White, Load Blue |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 26.04 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 7.92 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Lighting Technology | Sensing Technology | Installation Location (motion Sensor) | Communication Method | Time Delay | Coverage | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ODC0S-I1W | 120V AC | Fluorescent, Incandescent | Passive Infrared | Ceiling | Hard Wired | - | - | White | €168.04 |
