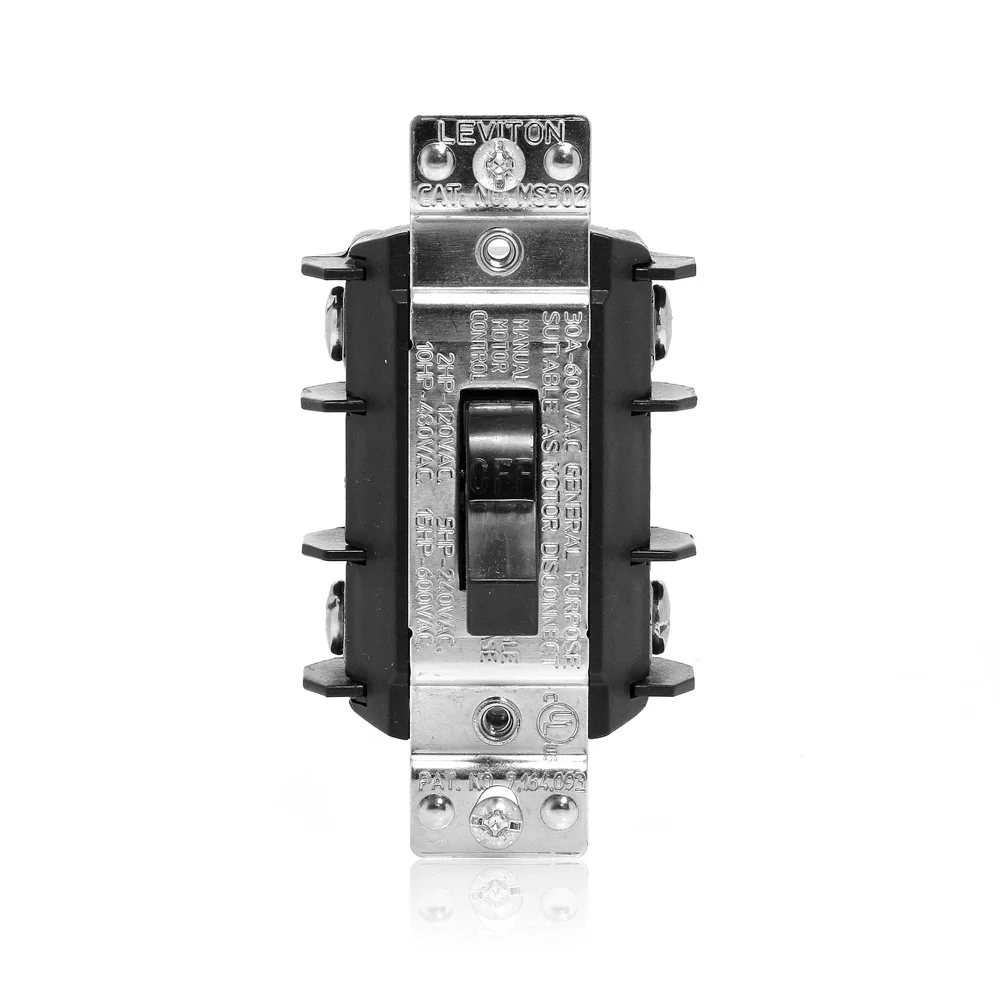

LEVITON MS302-DS AC Manual Motor Starter Switch, 600 VAC, 30 A, 15 HP, DPST, Black
Get it by Tuesday, Aug 25
€54.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Switch |
| Action | DPST |
| Actuator Type | Toggle |
| Amps | 30A |
| Application | Commercial Applications |
| Color | Black |
| Connection Type | Back Wired, Side Wired |
| Contact Amp Rating | 30A at 600V AC |
| Contact Configuration | DPST |
| Depth | 2.46" |
| Enclosure Rating | NEMA WD-1, NEMA WD-6 |
| Flammability | V-0 Per UL94 |
| Height | 6 5/8" |
| Hp Rating | 15 hp |
| Length | 9" |
| Material | Polyester |
| No. Of Poles | 2 |
| Operating Cycles | 6000 |
| Operating Temp. | -40°C to +60°C |
| Product Datasheet | leviton-ms302-ds.pdf |
| Size | 3 3/4" x 23" x 2.46" |
| Switch Type | Toggle |
| Terminal Type | Back, Side Wired Screw |
| Torque | 20 lbs.-in. |
| Type | Standard Toggle, Double Pole AC Motor Starter Switch |
| Voltage | 600V AC |
| Width | 2.31" |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 16.83 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 5.87 |
| Country of Origin | MX |
