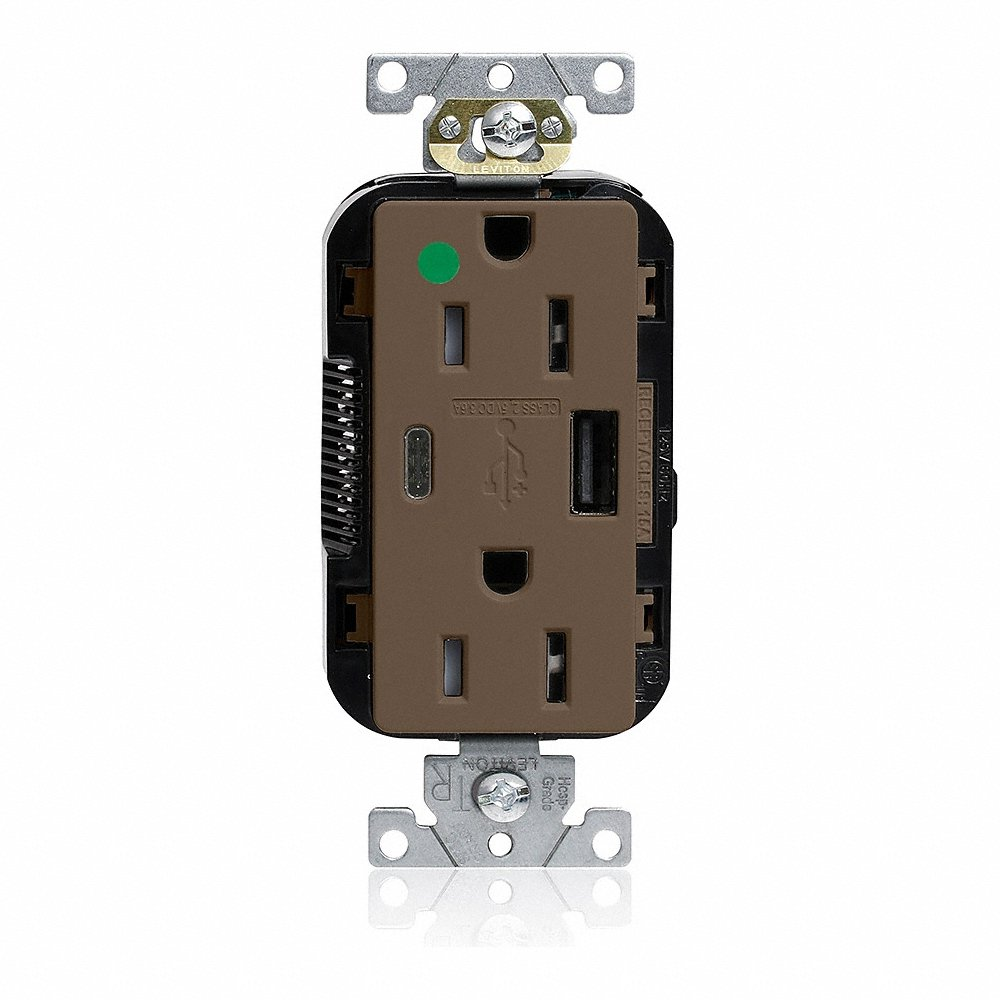

LEVITON M56AC-HG Self-Grounding Smooth Face Tamper-Resistant USB Receptacle, 125 VAC, 15 A, 25 W, 1/2 HP, 2 Poles, 3 Wires, Brown
Item: DN7JZGModel: M56AC-HGCross Ref: 810U74
7 In Stock
Ships within 2 days via
5.00% off
€170.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | PBT |
| Color | Brown |
| Comm Code Enhanced | 51200 |
| Dielectric Voltage | 2000V AC |
| Face Plate Height | 2 3/5" |
| Face Plate Width | 1.3" |
| Flammability | Rated V-0 per UL 94 |
| Grade | Heavy Duty Hospital Grade |
| Grounding | Self-Grounding |
| Hp Rating | 1/2 hp |
| Includes | Grounding Clip |
| Ip Rating | Not Rated |
| Locking Pin | Solid Brass |
| Max. Operating Temp. | 104°F |
| Max. Temp. Rise | 30°C |
| Min. Operating Temp. | 14°F |
| Mount Hole Center To Center Height | 3.26" |
| Mounting Screws | #6 Plated Steel |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlet | 4 |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| No. Of Wires | 3 |
| Operating Temp. | Maximum Continuous 40°C, Minimum -10°C (Without Impact) |
| Overall Depth | 2 1/5" |
| Phase | 1 |
| Power Indicating Light | No |
| Resistance Properties | Tamper Resistant |
| Shutter Mechanism | Acetal |
| Single Port Charging Power | 15 W |
| Termination | Modular |
| Total Charging Power | 25 W |
| Ul 94 Flammability Rating | V-0 |
| Usb Cable Compatible | Type A And Type C |
| Usb Connection Type | A, C |
| Voltage | 125V AC |
| Wire Connection Type | Modular Wiring |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 5.08 |
| Country of Origin | CN |
