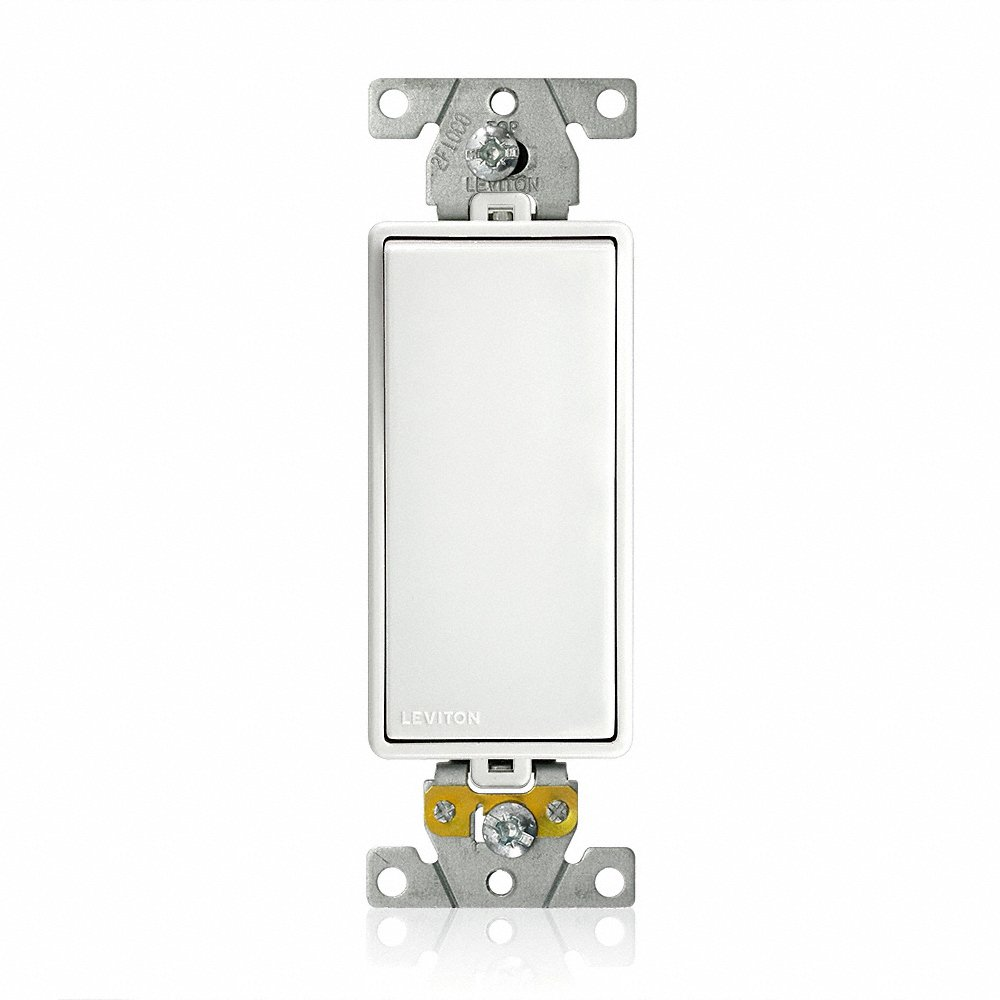

LEVITON M5623-W Framed Heavy Duty Self-Grounding Rocker Switch, 125 VAC, 20 A, 1 HP, 2 HP Power Rating, 3 Way
Item: DL8RYVModel: M5623-WCross Ref: 810U73
7 In Stock
Ships within 2 days via
5.00% off
€44.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rocker Switch |
| Amps | 20A |
| Ansi | C-73 |
| Application | Educational, Institutional, Office, Hospitality, Industrial |
| Base Material | Nylon |
| Color | White |
| Comm Code Enhanced | 51100 |
| Contact Material | Silver Alloy |
| Device Type | Rocker Switch |
| Dielectric Voltage | Withstands 1500v For 1 Min. |
| Endurance | 30000 Cycles Min. |
| Flammability | Rated V-2 per UL 94 |
| For Environment | Industrial |
| Frame Material | Polycarbonate |
| Grade | Heavy Duty Industrial |
| Ground Clips | Brass |
| Grounding | Self-Grounding |
| Hp Rating | 2 hp |
| Max. Operating Temp. | 140°F |
| Max. Temp. Rise | 30°C |
| Max. Wire Size | 12 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| No. Of Switches | 1 |
| Overall Height | 4.1" |
| Overall Width | 1.3" |
| Product Datasheet | leviton-m5623-w.pdf |
| Resistance Properties | Not Applicable |
| Strap Material | 0.046" Thick Galvanized Steel , Galvanized Steel |
| Switch Function | Maintained |
| Switch Style | Rocker |
| Terminal Accommodation | Wiring Module |
| Terminal Inside Dia. | Labeled On Wiring Module, Switch Is Keyed To Ensure Proper Installation |
| Termination | Modular |
| Type | Standard Rocker |
| Voltage | 120/277V AC |
| Wire Connection Type | Modular Wiring |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 4.29 |
| Country of Origin | MX |
