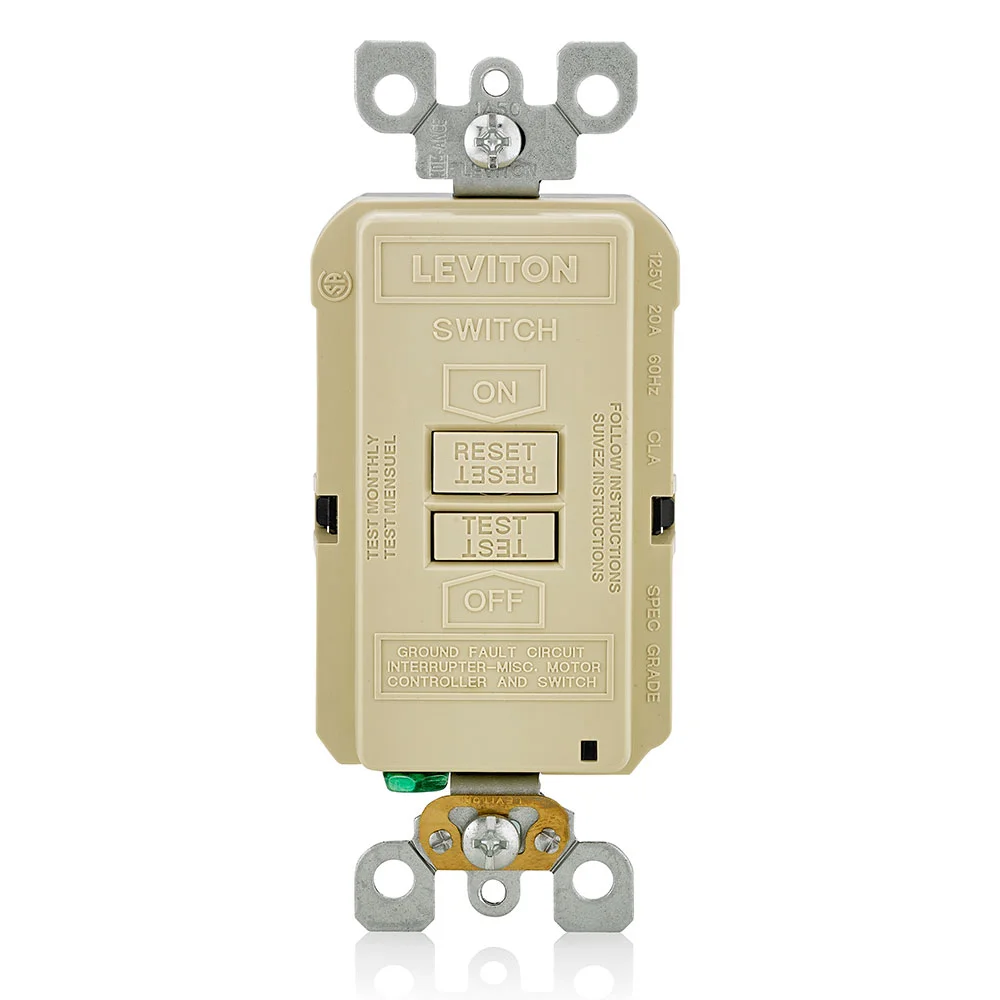

LEVITON GFRBF-I Blank Face GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Item: CR9HLJModel: GFRBF-ICross Ref: 792UG4
7 In Stock
Ships within 2 days via
5.00% off
€56.50 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp @ Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Ivory |
| Contact Material | Brass |
| Dielectric Voltage | Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06 |
| Face Material | Thermoplastic |
| Features | Self Test |
| Feed-through Amps | 20A |
| Grade | Residential, Commercial |
| Grounding | Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Ivory |
| Housing Material | Polycarbonate |
| Hp | 1 hp |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Double Wipe |
| Line Contacts Thickness | 0.031" |
| Market | Commercial |
| Max. Operating Temp. | 66°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -35°C |
| Min. Wire Size | 14 AWG |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-6 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Product Datasheet | leviton-gftr2-gy.pdf |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Amps | 10 kA |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Tamper Resistant | No |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Type | Blank Face |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wall Plate | Not Included |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
