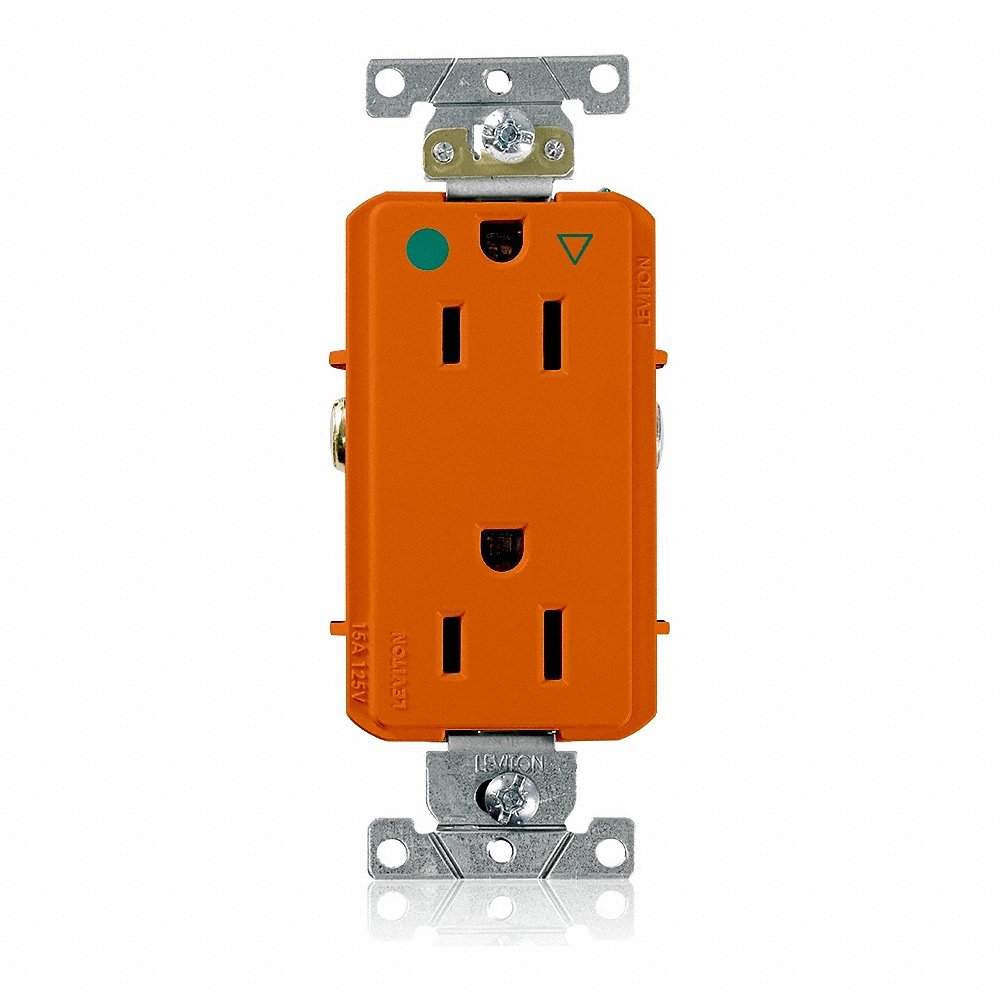

LEVITON D8200-IG Duplex Heavy Duty Isolated Self-Grounding Smooth Face Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange
Item: DT9BUNModel: D8200-IGCross Ref: 810U65
7 In Stock
Ships within 2 days via
5.00% off
€73.80 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Ansi | C-73 |
| Color | Orange |
| Comm Code Enhanced | 51200 |
| Configuration | 5-15R |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | NO Cover |
| Dielectric Voltage | Withstands 3000v Minimum |
| Dimension S | 4.06" x 1.71" x 1.13" |
| Face Plate Width | 1 3/5" |
| Flammability | Rated V-0 per UL 94 |
| Flange Type | Non Flanged |
| For Environment | Industrial |
| Grade | Grade Hospital |
| Ground Type | Self Grounding |
| Grounding | Self-Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Brass |
| Housing Material | PBT Polyester |
| Iec Configuration | C73 |
| Includes | Cover |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Screws | Triple Drive Plated Steel |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 5 |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| No. Of Wires | 3 |
| Overall Depth | 0.9" |
| Product Datasheet | leviton-d8200-ig.pdf |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Shutter Mechanism | Acetal |
| Strap Material | Steel |
| Temp. Rating | -40°C to +75°C |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | #8 Triple-Drive Brass |
| Terminal Type | Back, Side Wire |
| Termination | Back Or Side Wire |
| Type | Duplex Heavy Duty Isolated Self Grounding Smooth Face |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Type | Stranded Or Solid |
| Wiring | Back, Side |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 5.88 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 10.4 |
| Country of Origin | MX |
