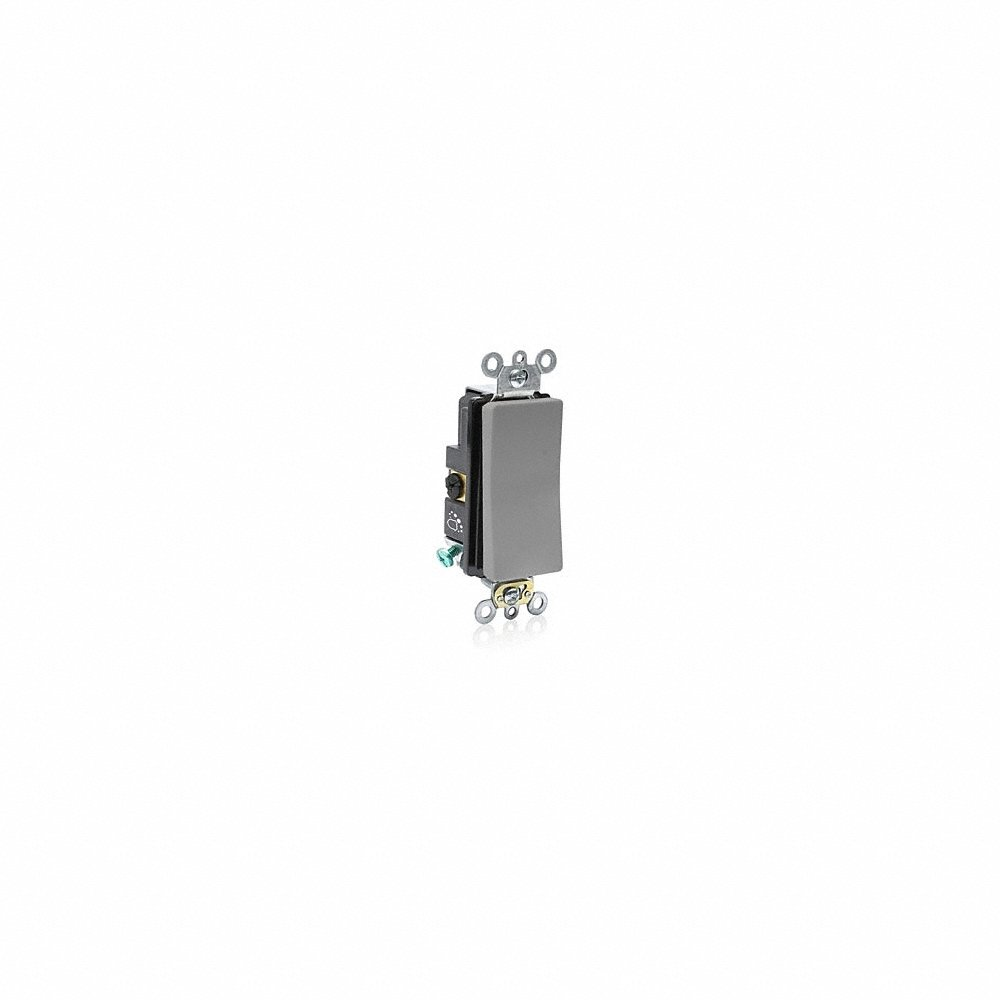

LEVITON A5623-2GY Self-Grounding AC Quiet Switch, 120/277 VAC, 20 A, 1 HP at 120 VAC, 2 HP at 277 VAC Power Rating, 3 Way
Item: DK8AEGModel: A5623-2GYCross Ref: 810U83
7 In Stock
Ships within 2 days via
5.00% off
€37.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Switch |
| Amps | 20A |
| Application | Health Care Facility, Educational Institution, Commercial Kitchen, Nursery, Bathroom, Children Bedroom And Hospitality Facility |
| Cam | Thermoplastic |
| Color | Gray |
| Comm Code Enhanced | 51100 |
| Contact | Silver-Alloy |
| Contact Material | Silver Alloy |
| Csa | C22.2 |
| Device Type | Rocker Switch |
| Dielectric Voltage | Withstands 1500v For 1 Min. |
| Endurance | 50000 Cycles Min. |
| Flammability | Rated HB or Better UL94 |
| Grade | Grade Commercial |
| Ground Clips | Brass |
| Grounding | Self-Grounding |
| Grounding Screw | Steel #8-32 |
| Hp Rating | 2 hp |
| Material | Thermoplastic Polyester (Body), Antimicrobial Urea (Rocker) |
| Max. Operating Temp. | 149°F |
| Max. Temp. Rise | 30°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| No. Of Switches | 1 |
| Overall Height | 4.1" |
| Overall Width | 1 4/5" |
| Product Datasheet | leviton-a56232i.pdf |
| Resistance Properties | Antimicrobial |
| Rocker | Antimicrobial Urea |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Storage Temp. | -40°C to +65°C |
| Strap Material | Galvanized Steel |
| Switch Function | Maintained |
| Switch Style | Rocker |
| Switch Type | 3-Way |
| Terminal Inside Dia. | Brass Hot, Black Hot, White Neutra, Green Ground |
| Terminal Screws | Brass #8-32 |
| Termination | Back Or Side Wire |
| Type | Self Grounding |
| Voltage | 120/277V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 10.64 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 4.13 |
| Country of Origin | MX |
