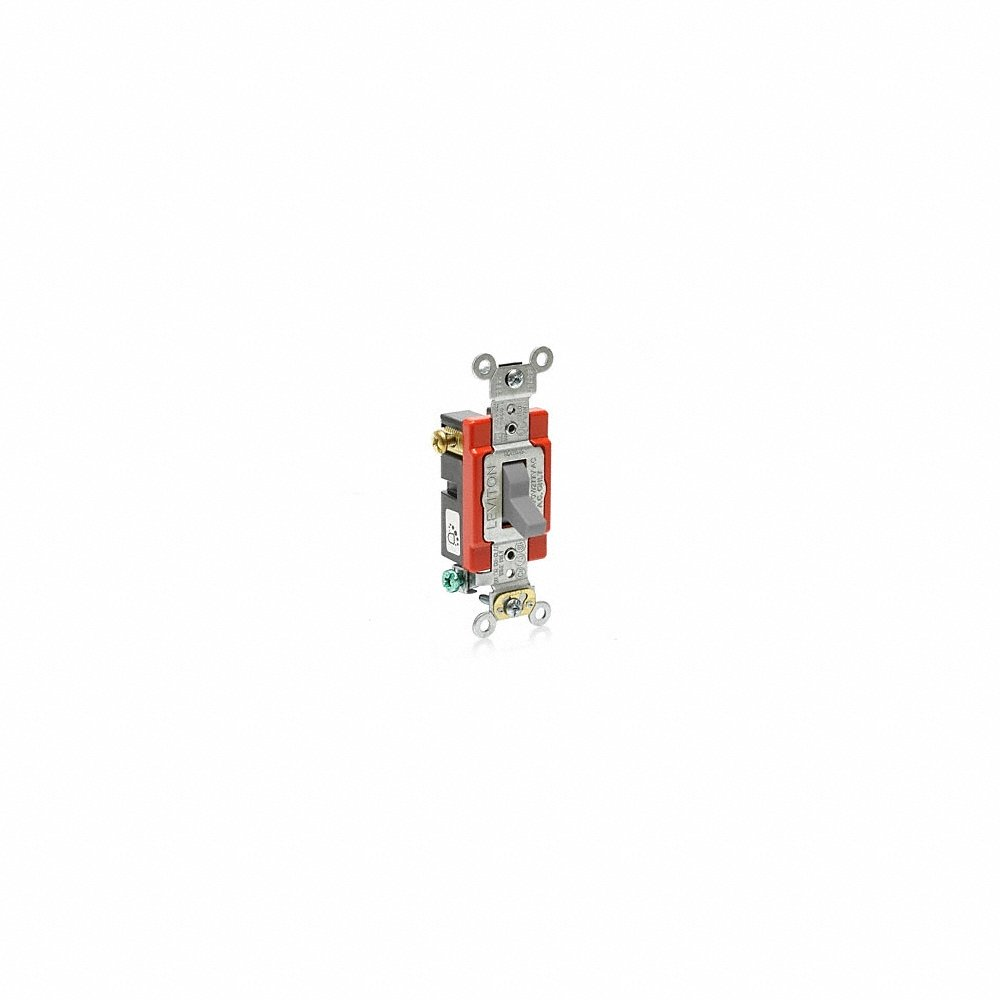

LEVITON A1223-GY Wall Switch, Toggle Switch, 3-Way, Gray, 20 A, Screw Terminals
Item: DQ4UXJModel: A1223-GYCross Ref: 810U92
7 In Stock
Ships within 2 days via
5.00% off
€26.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch |
| Amps | 20A |
| Application | Industrial, Commercial |
| Base Material | Thermoplastic |
| Color | Gray |
| Comm Code Enhanced | 51100 |
| Contact | Silver-Alloy |
| Contact Material | Silver Alloy |
| Cover Material | Thermoplastic |
| Device Type | Toggle Switch |
| Dielectric Voltage | Withstands 1500v For 1 Min. |
| Dimension S | 4.06" x 1.31" x 1.6" |
| Enclosure | NEMA WD-1/WD-6 |
| Endurance | 50000 Cycles Min. |
| Flammability | Rated HB or Better UL94 |
| For Environment | Industrial |
| Grade | Extra Heavy Duty Industrial |
| Ground Clips | Brass |
| Grounding | Self-Grounding |
| Grounding Screw | Steel #8-32 |
| Hp Rating | 2 hp |
| Max. Operating Temp. | 149°F |
| Max. Temp. Rise | 30°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| No. Of Switches | 1 |
| Operating Cycles | 50000 Cycles |
| Overall Height | 4.1" |
| Overall Width | 1.3" |
| Resistance Properties | Antimicrobial |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Storage Temp. | -40°C to +65°C |
| Strap Material | Galvanized Steel |
| Switch Function | Maintained |
| Terminal Inside Dia. | Brass Hot, Black Hot, White Neutra, Green Ground |
| Terminal Screws | Brass #8-32 |
| Terminal Type | Back, Side Wire |
| Termination | Back Or Side Wire |
| Type | 3 Way Extra Heavy Duty |
| Voltage | 120/277V AC |
| Wire Connection Type | Screw Terminal |
| Wiring | Back, Side |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 10.64 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 4.14 |
| Country of Origin | MX |
