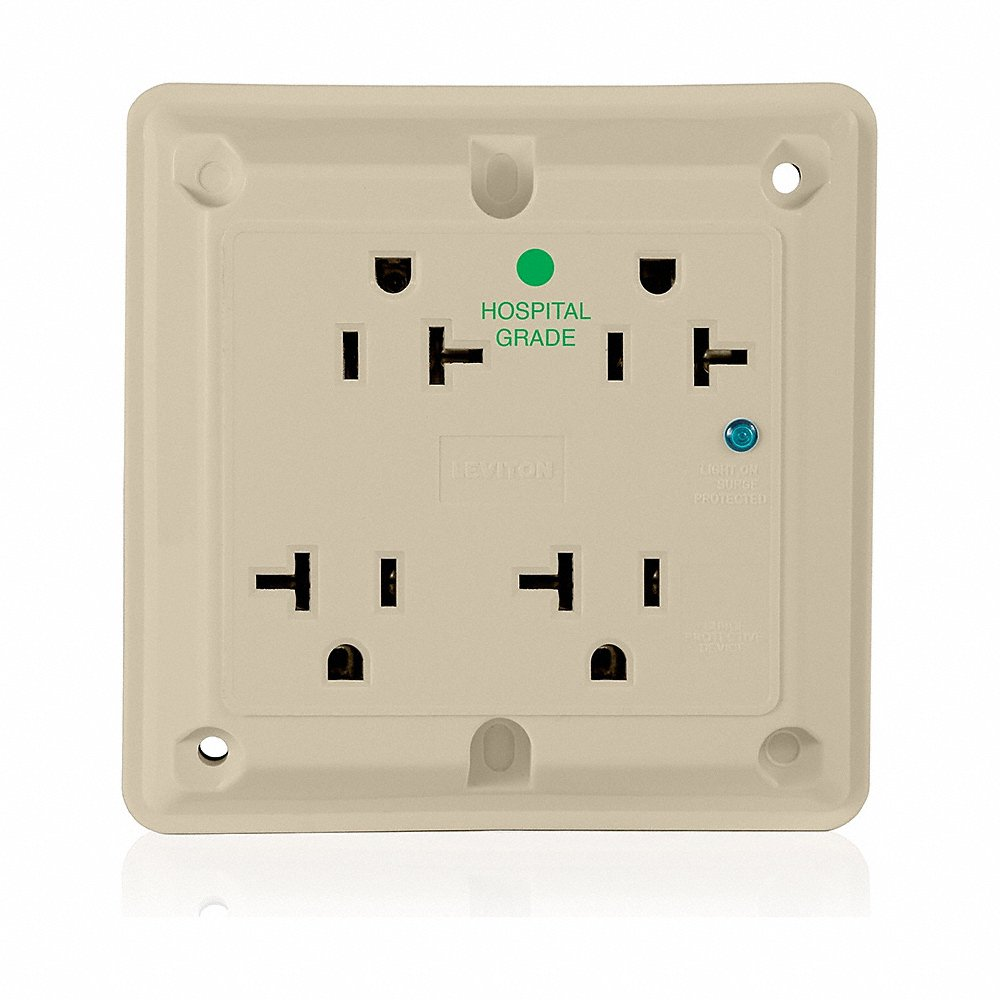

LEVITON 8490-I Grounding Surge Protective Quadruplex Type 3 Straight Blade Four-In-One Receptacle, 125 VAC, 20 A, 2 Pole, 3 Wire, Ivory
Item: DT3LRNModel: 8490-ICross Ref: 810UC1
7 In Stock
Ships within 2 days via
5.00% off
€161.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Ansi | C-73 |
| Body Material | Nylon |
| Clamp Nut Finish | Zinc-Plated |
| Clamp Nut Material | Steel |
| Color | Ivory |
| Comm Code Enhanced | 57430 |
| Configuration | 5-20R |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | NO Cover |
| Dielectric Voltage | Withstands 2000v Per UL498 |
| Dimension S | 4.5" x 1.15" |
| Enclosure | NEMA WD-1/WD-6 |
| Flange Type | Non Flanged |
| For Environment | Industrial |
| Grade | Grade Commercial |
| Grounding | Grounding |
| Iec Configuration | C73 |
| Ip Rating | Not Rated |
| Joules Rating | 720 |
| Line Contacts | Brass Triple Wipe |
| Material | Polycarbonate |
| Max. Operating Temp. | 140°F |
| Max. Surge Amps | D |
| Max. Surge Amps Per Mode (per Phase) | 27 KA (L-N:18kA, L-G:9kA) |
| Max. Wire Size | 10 AWG |
| Mcov | 150 VRMS |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mounting Screws | Zinc Plated Steel 8-32 |
| Mounting Screws Grade | Grade 8-32 |
| Mounting Type | Flush |
| Nema | WD-6 |
| Nema Enclosure Rating | NEMA 5 |
| No. Of Poles | 2 |
| No. Of Wire | 3 |
| No. Of Wires | 3 |
| Nominal Discharge Amps | 3 kA |
| Overall Depth | 11 1/2" |
| Phase | 1 |
| Product Datasheet | leviton-5891-w.pdf |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Short Circuit Amps | 5 kA |
| Shutter Mechanism | Delrin Acetal |
| Temp. Rating | -40°C to +60°C |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Type | Back, Side Wire |
| Termination | Back Or Side Wire |
| Type | 4 In 1 Extra Heavy Duty Grounding Quadruplex Surge Protective |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Vpr | L-N 500V, L-G 600V, N-G 500V |
| Wire Connection Type | Screw Terminal |
| Wiring | Side |
| Wiring Method | Back And Side |
| Yoke | Zinc Plated Steel |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 11.58 |
| Ship width (cm) | 4.52 |
| Country of Origin | MX |
