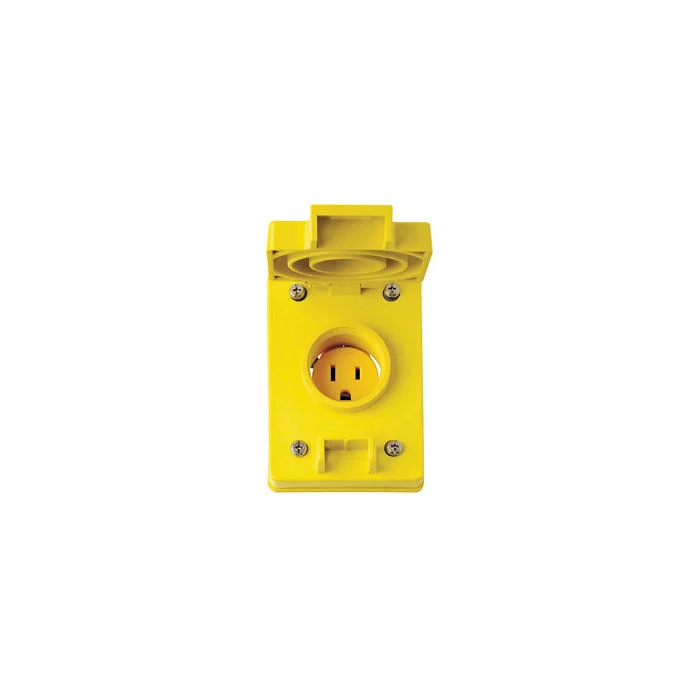

LEVITON 60W47 Narrow Body Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Item: CV4QENModel: 60W47Cross Ref: 792TW7
7 In Stock
Ships within 2 days via
5.00% off
€171.51 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Assembly Screws Grade | Grade 300 |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Nickel Plated Brass |
| Body Material | Thermoplastic Nylon |
| Bushing Material | Santoprene TPV |
| Clamp Nuts Finish | Nickel Plated |
| Clamp Nuts Material | Brass |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Cord Range | 0.375" to 0.655" |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Device Type | Straight Blade Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Flammability | Rated V-2 Per UL 94 |
| Flange Type | Flanged |
| Grounding | Grounding |
| Grounding Screw Finish | Nickel Plated |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Ip Rating | IP66, IP67, IP68, IP69K |
| Line Contacts Finish | Nickel Plated |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Receptacle Type | Single |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Nickel Plated |
| Terminal Screws Material | Brass |
| Termination | Back |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Module | Thermoplastic |
| Yoke Finish | Nickel Plated |
| Yoke Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 22.54 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 8.89 |
| Country of Origin | MX |
