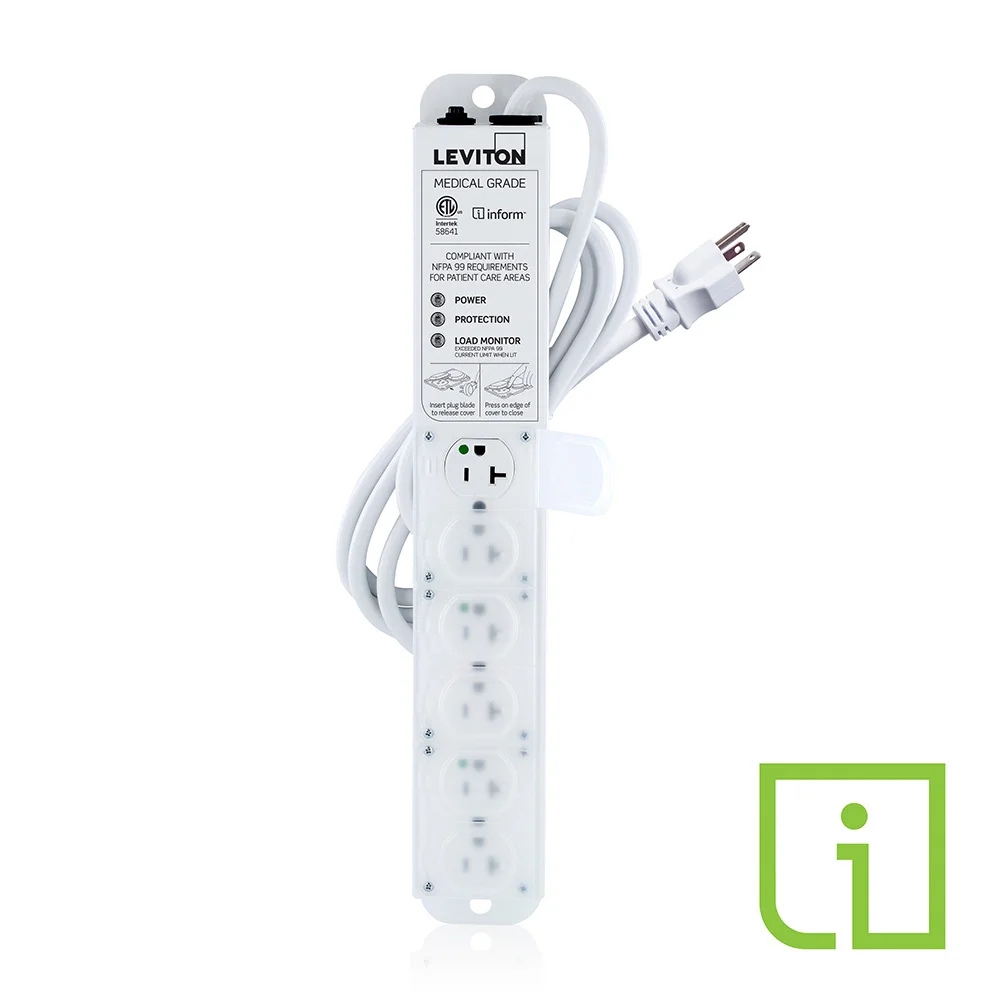

LEVITON 53C6M-2S7 Current Monitoring Surge Protected Power Outlet Strip, Locking Cover, 125 VAC, 20 A, 6 Outlets, 7 ft L Cord
Item: CR9HHUModel: 53C6M-2S7Cross Ref: 791ED1
7 In Stock
Ships within 2 days via
5.00% off
€577.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Outlet Strip |
| Amps | 20A |
| Application | Hospital And Medical Facility |
| Cord Length | 7 ft. |
| Enclosure Material | Steel |
| Enclosure Material Finish | Powder Coated |
| Features | LED Indication |
| Frequency | 60 Hz |
| Grade | Medical |
| Height | 1 5/8" |
| Hg Outlet Configuration | NEMA 5-20R |
| Hg Plug Configuration | NEMA 5-20P |
| Housing Material | Steel |
| Hz | 60 Hz |
| Inform Feature | Load Monitoring |
| Inform Technology | Yes |
| Joules Rating | 644J |
| Length | 16 7/8" |
| Line Cord | #12/3 SJT |
| Max. Amps | 20A |
| Max. Leakage Current | Less Then 100 µA |
| Max. Surge Current | 27 kA |
| Mcov | 150V |
| Medical Facility Use | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) |
| Mounting Style | Mounting Hole |
| No. Of Receptacles | 6 |
| Noise Attenuation | -29 dBA to -6 dBA |
| Noise Filtering | -6 dB to -29 dB |
| Operating Temp. | 0°C to 40°C |
| Outlet Covers | Polypropylene |
| Plug Configuration | NEMA 5-20P |
| Power Indicator | Yes |
| Rated Joules | 644J |
| Receptacle Configuration | Hospital Grade |
| Special Features | A Real-Time, Line-Of-Sight LED Indication When The NFPA 99 75% Limit Has Been Reached (This Is An Indication Only - No Power Will Be Shut Off To The Outlets, Inform Monitors The Load Of Devices So You Dont Have To, Eliminating The Need For Manual Calculations, Load Monitoring LED Will Remain Off Until The 75% Limit Is Reached |
| Standards | Ul 1363A, Ul 1449, Ul 60601-1, Ul 60950-1 |
| Storage Temp. | -10°C to +50°C |
| Surge Protection | Yes |
| Surge Protection Indicator | Yes |
| Total Number Of Outlets | 6 |
| Trade Designation | SJT |
| Voltage | 125V AC |
| Voltage Protection Rating (vpr) L-n, L-g, N-g | 600/500V |
| Width | 2 5/8" |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 17.46 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 6.67 |
| Country of Origin | MX |
Product Variants
| Product | Model | Cord Length | Max. Amps | Housing Material | Medical Facility Use | Plug Configuration | Receptacle Configuration | Height | Max. Surge Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5306M-1S5 | 15 ft. | 15A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-15P | Hospital Grade | 1 5/8" | 27 kA | €445.09 | |
 |
53C6M-1S5 | 15 ft. | 15A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-15P | Hospital Grade | 1 5/8" | 27 kA | €612.90 | |
 |
53C6M-1S7 | 7 ft. | 15A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-15P | Hospital Grade | 1 5/8" | 27 kA | €606.17 | |
 |
5306M-1S7 | 7 ft. | 15A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-15P | Hospital Grade | 1 5/8" | 27 kA | €376.56 | |
 |
5306M-2S5 | 15 ft. | 20A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-20P | Hospital Grade | 1 5/8" | 27 kA | €500.95 | |
 |
5306M-2S7 | 7 ft. | 20A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-20P | Hospital Grade | 1 5/8" | 27 kA | €444.95 | |
 |
53C6M-2S5 | 15 ft. | 20A | Steel | Outside Patient Care Areas (UL 1449), Patient Care - Only When Permanently Mounted (UL 1363A), Patient Care (UL 60601-1) | NEMA 5-20P | Hospital Grade | 1 5/8" | 27 kA | €655.48 |
