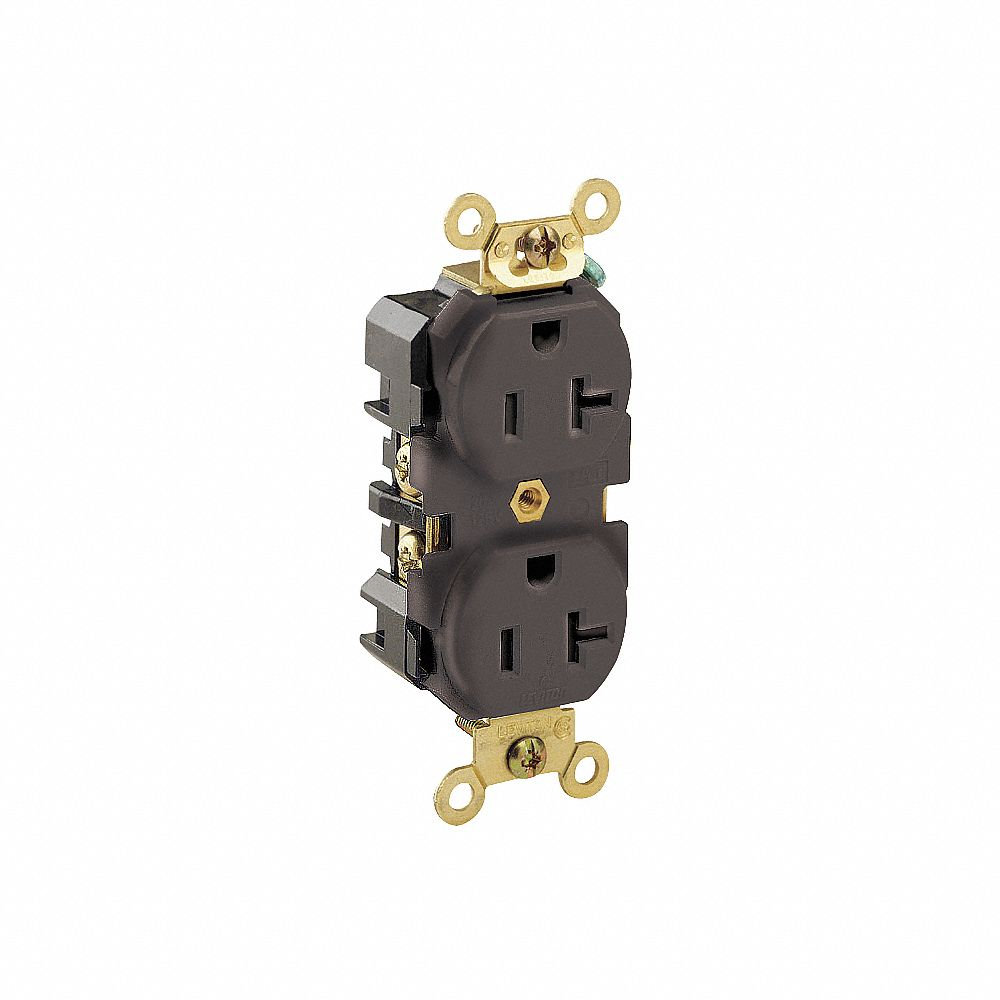

LEVITON 5362 Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown, Thermoplastic, Back and Side Wired
Item: EA6QBWModel: 5362Cross Ref: 792TR4
7 In Stock
Ships within 2 days via
5.00% off
€34.64 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps Rating | 20A |
| Ansi | C-73 |
| Clamp Nut Finish | Zinc-Plated |
| Clamp Nut Material | Steel |
| Comm Code Enhanced | 51200 |
| Connection | Back And Side Wired |
| Connection Orientation | Straight |
| Constructional Feature | Impact Resistant |
| Contact Type | Socket |
| Coo | Mx |
| Cover Type | NO Cover |
| Dielectric Voltage | Withstands 2000v Per UL498 |
| Dimension S | 46" x 1.53" x 1.11" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1 1/2" |
| Flammability | Rated V-2 per UL 94 |
| Grade | Commercial, Federal Specification |
| Ground Type | Self Grounding |
| Grounding | Self-Grounding |
| Grounding Screw | Brass #8-32 |
| Height | 4 3/25" |
| Housing Color | Brown |
| Hp | 1 hp |
| Key Resistance Properties | Standard Resistance |
| Length | 1 22/25" |
| Line Contacts | Brass Triple Wipe |
| Market Class | D78 |
| Material | Thermoplastic |
| Max. Operating Temp. | 140°F |
| Max. Wire Size | 10 AWG |
| Min. Dielectric Strength | 2000V |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting | Wall Box |
| Mounting Type | Flush |
| Nema Configuration | 5-20 , 5-20R |
| Nema Enclosure Rating | Not Rated |
| No. Of Poles | 2 |
| No. Of Poles/wires | 2 Pole, 3 Wire |
| No. Of Wire | 3 |
| Number Of Poles & Wires | 2, 3 |
| Overall Depth | 1.1" |
| Phase | 1 |
| Receptacle Type | Duplex |
| Resistance Properties | Not Applicable |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Temp. Rating | -40°C to +60°C |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass #10-32 |
| Terminal Type | Back, Side Wire |
| Termination | Back Or Side Wire |
| Torque | 14 lbs.-in. to 16 lbs.-in. |
| Type | 1 Phase Duplex Extra Heavy Duty |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Width | 1.38" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side , Side, Back |
Shipping Info:
| Ship weight (kg) | 1.12 |
| Ship height (cm) | 10.96 |
| Ship length (cm) | 18.26 |
| Ship width (cm) | 9.84 |
| Country of Origin | MX |
