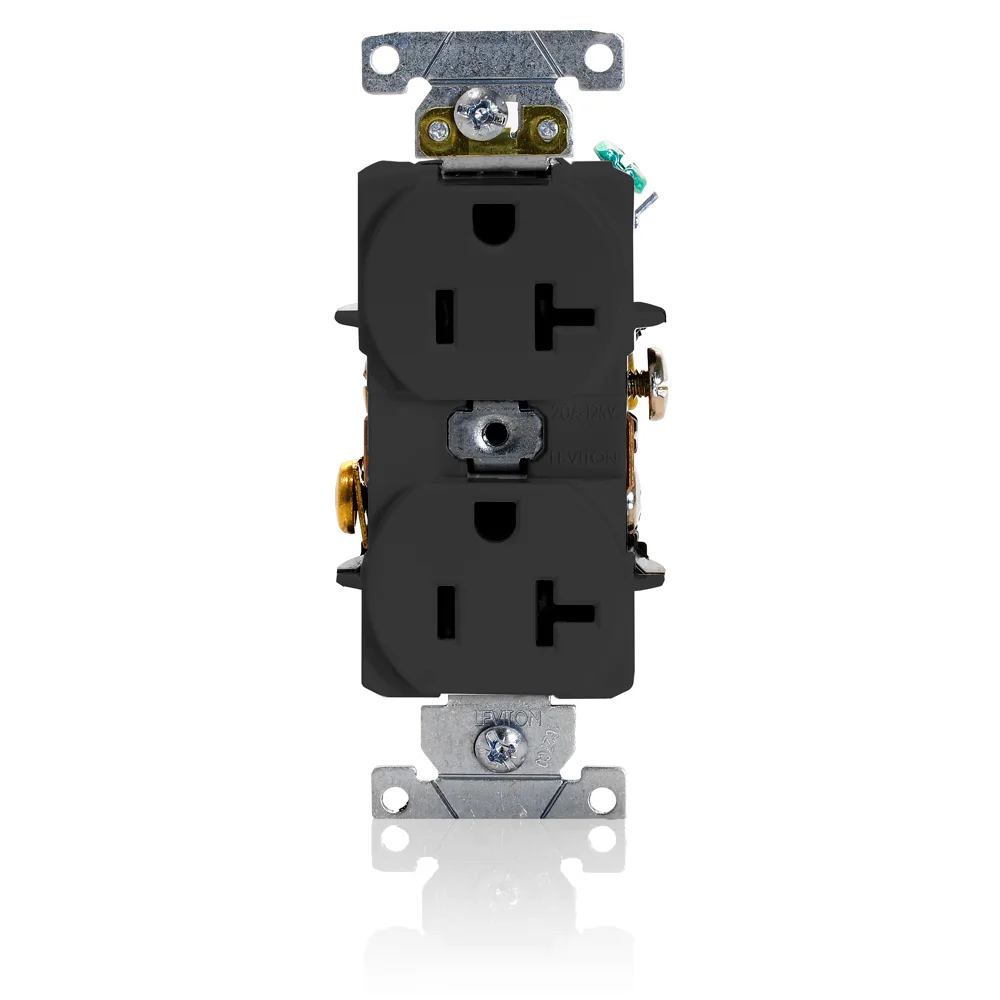

LEVITON 5352-E Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black, Back and Side Wired
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Application | Commercial Applications |
| Color | Black |
| Connection Type | Back Wired, Side Wired |
| Depth | 1 3/25" |
| Enclosure Rating | NEMA WD-1, NEMA WD-6 |
| Flammability | V-2 Per UL 94 |
| Grade | Grade Industrial |
| Height | 8 1/2" |
| Hp Rating | 1 hp |
| Length | 12 3/4" |
| Material | Thermoplastic |
| Min. Dielectric Strength | 2000V |
| Mounting Type | Wall Box |
| Nema Rating | NEMA 5-20R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | leviton-5352-e.pdf |
| Size | 46" x 1.55" x 1.12" |
| Temp. Rating | -40°C to +60°C |
| Terminal Type | Back, Side Wired |
| Type | Straight Blade, Duplex Outlet |
| Voltage | 125V , 125V AC |
| Width | 1.55" |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.94 |
| Country of Origin | MX |
Documentation:
