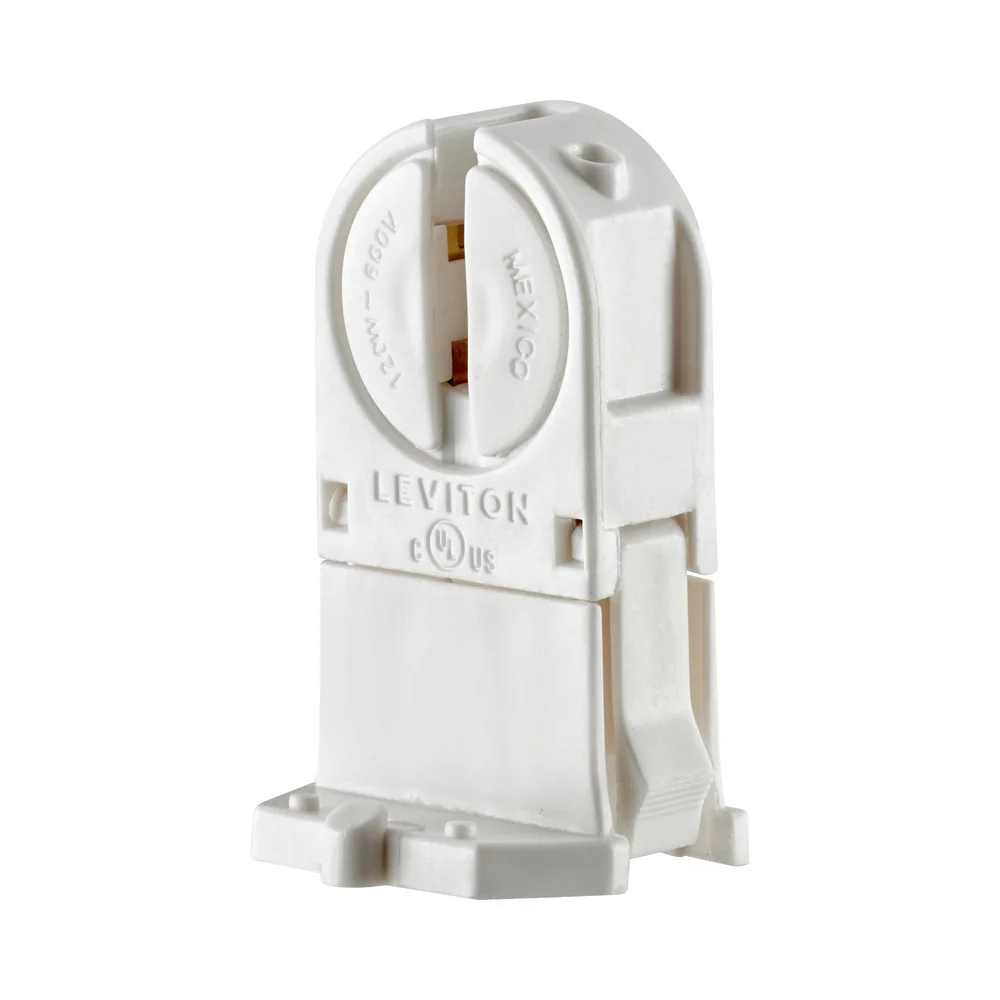

LEVITON 13654-TWP Lampholder With Lamp Lock, 120 W, 600 VAC, Bi-Pin Miniature Fluorescent Lamp
Item: CR9GZLModel: 13654-TWPCross Ref: 799LA4
7 In Stock
Ships within 2 days via
5.00% off
€3.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lampholder |
| Body Material | Thermoplastic |
| Bulb Base Type | Miniature Bi-Pin |
| Color | White |
| Connection | Quickwire |
| Contact Material | Copper Alloy |
| Contact Type | Lamp Lock |
| Features | Quickwire 18AWG Solid Or Stranded Tinned Termination, Tall Profile Style, With Panel Locator Post |
| Fits Brand | Universal |
| Lamp Base | Miniature |
| Lamp Contacts | Bi Pin |
| Lamp Type | T5 |
| Lampholder Type | Linear |
| Light Type | Fluorescent |
| Mounting | Slide On, Snap In |
| Mounting Type | Snap In or Slide On |
| Panel Thickness | 22 ga. to 25 ga. |
| Product Datasheet | leviton-5410-w.pdf |
| Product Type | Lamp Holder |
| Rated Wattage | 120 W |
| Screw | Panel Locator Post |
| Standards | Csa Certified, Nom, Ul |
| Termination | Quickwire 18AWG Solid or Str. Tinned |
| Voltage | 600V |
| Wattage | 120 W |
| Wire Gauge | 18 AWG |
| Wire Strip Length | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 10.33 |
| Ship length (cm) | 13.65 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Wattage | Voltage | Bulb Base Type | Color | Overall Length | Mounting | Body Material | Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
26719-100 | 75 W | 600V | 2-Pin | White | 1 3/8" | Snap In | Thermoplastic | Quickwire | €12.04 | |
 |
26719-200 | 75 W | 600V | 2-Pin | White | 1 3/8" | Horizontal Screw Down | Thermoplastic | Quick Connect | €11.58 | |
 |
26725-213 | 75 W | 600V | 2-Pin | White | 1 3/8" | Bottom Screw Down | Thermoplastic | Quick Connect | €12.21 | |
 |
26720-200 | 75 W | 600V | 2-Pin | White | 1 3/8" | Horizontal Screw Down | Thermoplastic | Quick Connect | €12.12 | |
 |
26720-100 | 75 W | 600V | 2-Pin | White | 1 3/8" | Snap In | Thermoplastic | Quick Connect | €8.42 | |
 |
26725-413 | 75 W | 600V | - | White | 1 3/8" | Bottom Screw Down | Thermoplastic | - | €24.68 | |
 |
26725-403 | 75 W | 600V | 4-Pin | White | 1 3/8" | Bottom Snap In | Thermoplastic | Quick Connect | €18.91 |
