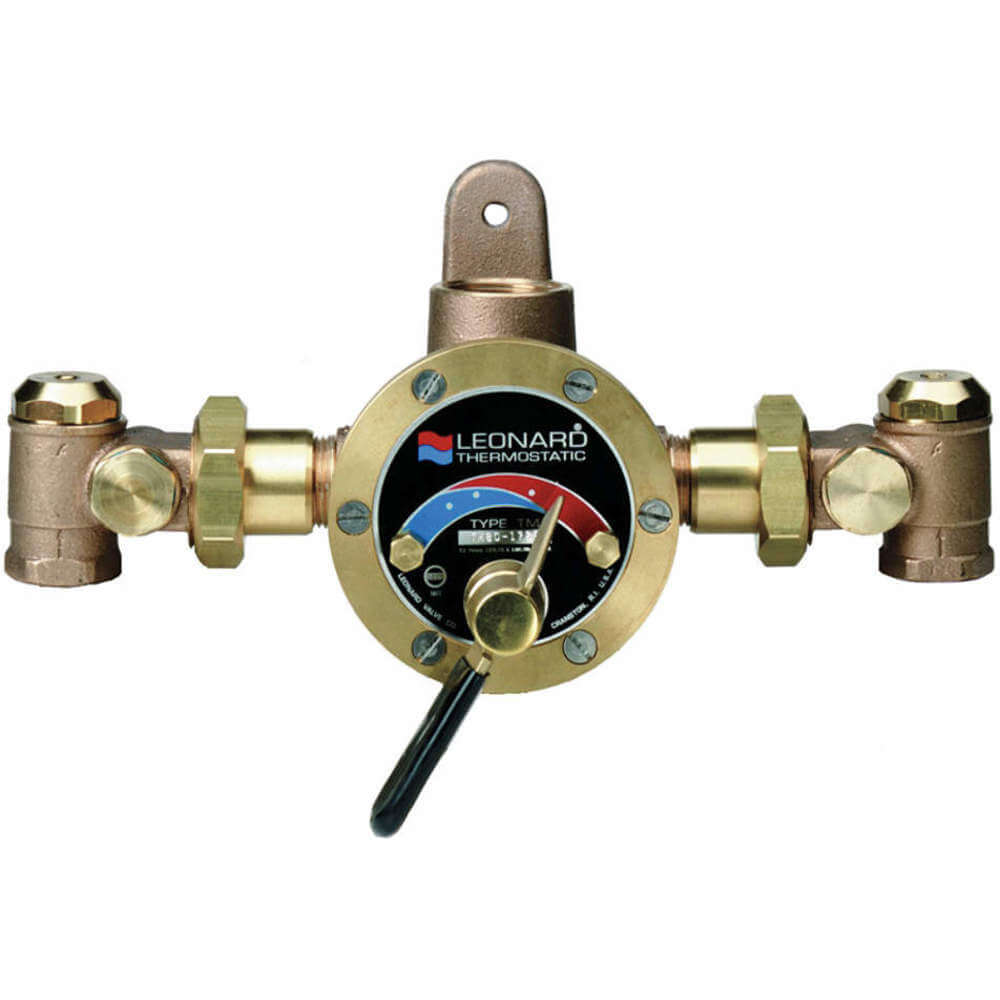

LEONARD VALVE TMS-80-RF Steam And Water Mixing Valve Brass
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,707.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Steam and Water Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temperature Range | 40°F to 85°F |
| Connection Size | 1" x 1 1/4" |
| Connection Type | NPT x NPT |
| Flow Rate | 32 GPM |
| For Media | Steam, Water |
| Hot Inlet Temp. | +120°F to +200°F |
| Hot Inlet Temperature Range | 120°F to 200°F |
| Includes | Color Coded Temperature Scale, Heat Resistant Temperature Adjusting Lever, High Temperature Limit Stop, Integral Wall Support |
| Includes Temperature Gauge | No |
| Inlet Temperature (hot) | 120 Degrees to 200 Degrees F |
| Inlet Type | FNPT |
| Max. Pressure | 80 psi |
| Operating Pressure Range | 30 psi to 80 psi |
| Outlet Size | 1 1/4" |
| Outlet Temperature Range | 65°F to 140°F |
| Outlet Type | FNPT |
| Overall Height | 7 1/2" |
| Overall Width | 12" |
| Seal Material | NBR |
| Temp. Range | +65°F to +140°F |
| Valve Type | Thermostatic |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 22.61 |
| Ship width (cm) | 22.86 |
| HS code | 8481801050 |
| Country of Origin | US |
Product Variants
| Model | Flow Rate | Outlet Size | Connection Size | Inlet Type | Outlet Type | Temp. Range | Inlet Size | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TMS-25-RF | 27 GPM | - | 3/4" x 3/4" | FNPT | FNPT | +65°F to +140°F | 3/4" | Bronze | €1,613.66 | |
| TMS-50-RF | 30 GPM | 1" | 3/4" x 1" | FNPT | FNPT | +65°F to +140°F | 3/4" | Bronze | €1,870.35 | |

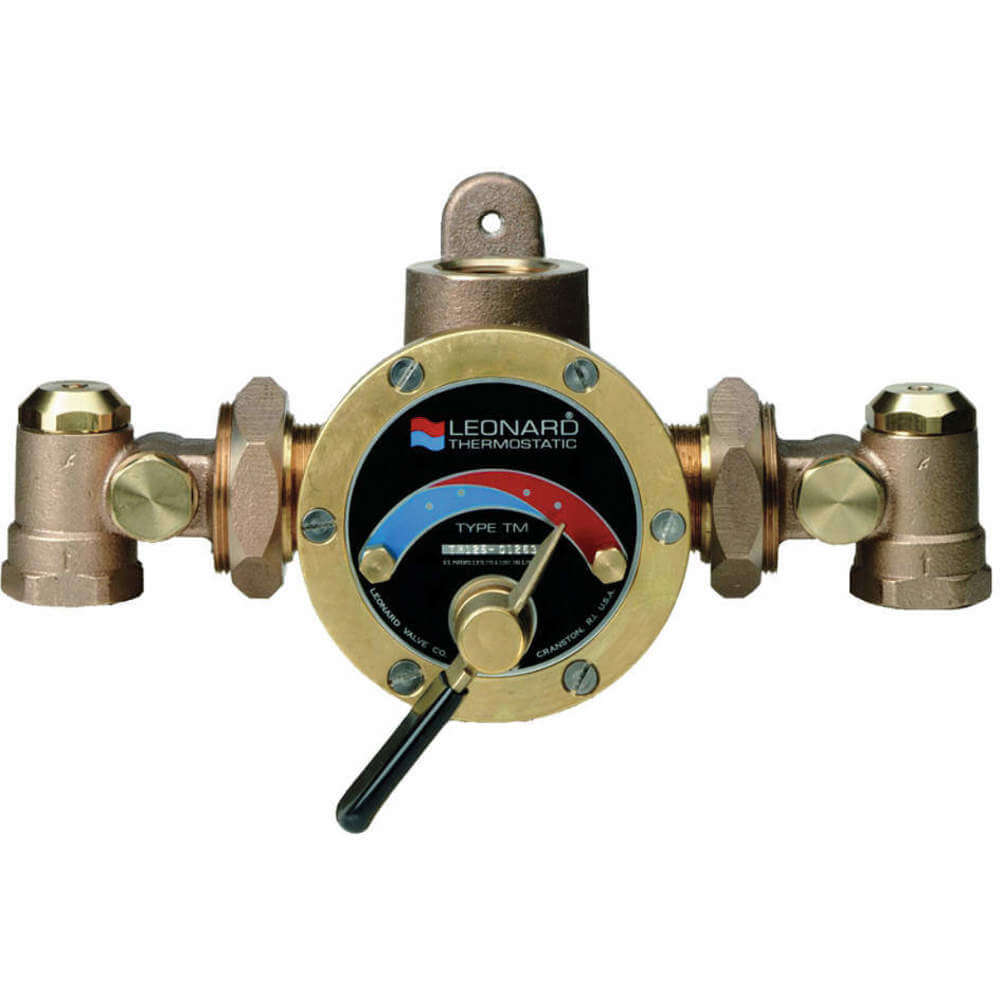

| TMS-150-RF | 50 GPM | 1 1/2" | 1 1/4" x 1 1/2" | FNPT | FNPT | +65°F to +140°F | - | Bronze | €2,683.40 |
