LEGRIS 7910 60 00 Ball Valve, 3/8 Inch Tube, 145 PSI CWP, -4 Deg F to 176 Deg F, Push, Push x Push | CR8PXV 1PGB2

LEGRIS 7910 60 00 Ball Valve, 3/8 Inch Tube, 145 PSI CWP, -4 Deg F to 176 Deg F, Push, Push x Push

Item: CR8PXVModel: 7910 60 00Cross Ref: 1PGB2
7 In Stock

Ships within 2 days via

€84.16
10.00% off
€75.74 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Agency Compliance Not Rated
Ansi Flange Class Not Applicable
Average Surface Roughness Not Applicable
Ball Finish Brass , Nickel Plated
Ball Opening Size 0.38"
Ball Port Style Full Port
Ball Valve Product Group Manual
Body Material Polymer
Body Seal Material Buna N
Body Style Inline
Connection Gender - Side 1 Female
Connection Gender Side 2 Female
Connection Size - Side 1 3/8"
Connection Size - Side 2 3/8"
Connection Type Push x Push
Connection Type - Side 1 Push
Connection Type - Side 2 Push
Features Can Be Mounted On A Wall Or Adjacent Surface Using Staples
For Media Air
Handle Lever
Handle Color Blue
Handle Material Polymer
Handle Type Screw Driver Slot Compact Handle
Included Mounting Not Applicable
Manufacturer Warranty 1 yr.
Max. Pressure 145 psi
Max. Pressure (cwp) 145.03 psi
Max. Pressure For Combustible Gas Not Rated
Media Temp. Range -4°F to +176°F
Nominal Valve Size 3/8"
Overall Length 2.6"
Pipe Schedule Compatibility Not Applicable
Port Full
Seal Material Buna-N
Seat Material Graphite
Standards Reach, Rohs Compliant
Stem Material Brass
Stem Type Blowout Resistant
Temp. Range -4°F to +176°F
Tube Size 3/8"
Vacuum Service Rating Not Rated
Valve Body Style Straight
Valve Construction One-Piece
Valve Series MINI
Valve Structure One Piece
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 0.34
Ship height (cm)5.08
Ship length (cm)5.08
Ship width (cm)5.08
Country of OriginCN

Product Variants

ProductModelBody MaterialConnection TypeMax. PressureSeat MaterialHandle MaterialOverall LengthBody Seal MaterialPipe SizePrice

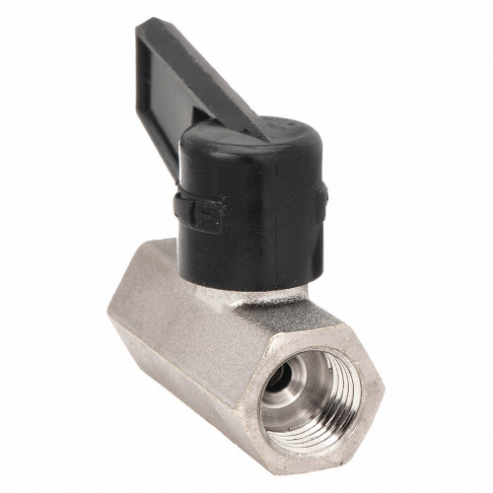

LEGRIS 0492 10 21 Ball Valve, 1/2 Inch Pipe, 175 PSI CWP, -4-176 Deg F, Female NPT | CR8PXR 48RJ83 0492 10 21BrassFNPT x FNPT175 psiGraphite, PolymerPolymer2.12"Nitrile1/2"€83.46

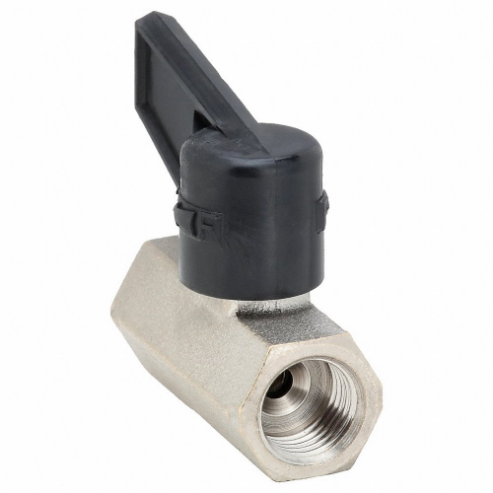

LEGRIS 0492 04 13 Ball Valve, 1/4 Inch Pipe, 175 PSI CWP, -4-176 Deg F, Female NPT | CR8PXT 48RJ81 0492 04 13BrassFNPT x FNPT175 psiGraphite, MPTFENylon1.55"Nitrile1/4"€55.64
LEGRIS 0492 07 17 Ball Valve, 3/8 Inch Pipe, 175 PSI CWP, -4-176 Deg F, Female NPT | CR8PXU 48RJ82 0492 07 17BrassFNPT x FNPT175 psiGraphite, MPTFENylon1.77"Nitrile3/8"€70.70

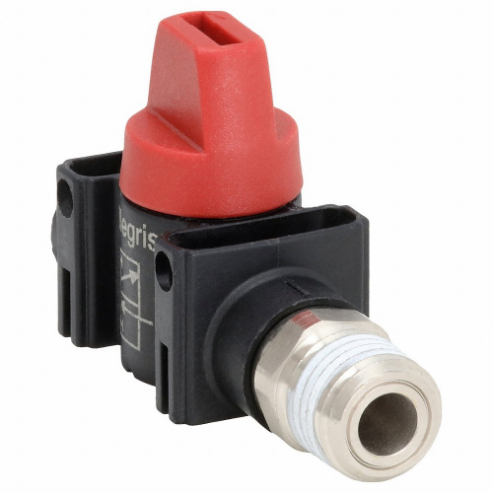

LEGRIS 7915 56 14 Mini Ball Valve, 1/4 Inch Pipe, 1/4 Inch Tube, Full, 145 Psi Cwp, -4 Deg F To 176 Deg F | CR8RRB 1PGB6 7915 56 14NylonMNPT x Push145 psiBuna NPolymer-Buna N1/4"€72.16

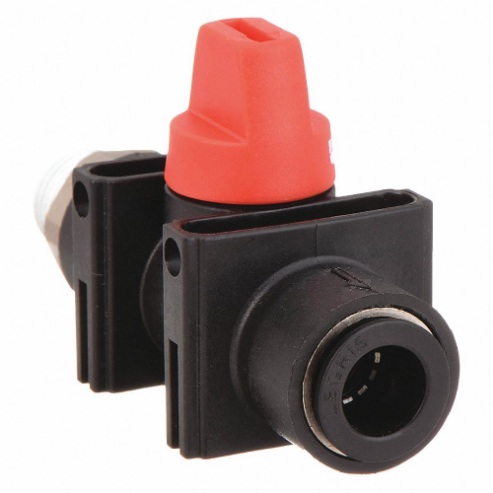

LEGRIS 7915 60 14 Mini Ball Valve, 1/4 Inch Pipe, 3/8 Inch Tube, Full, 145 Psi Cwp, -4 Deg F To 176 Deg F | CR8RRC 1PGB7 7915 60 14NylonMNPT x Push145 psiBuna NPolymer2.4"Buna N1/4"€82.97

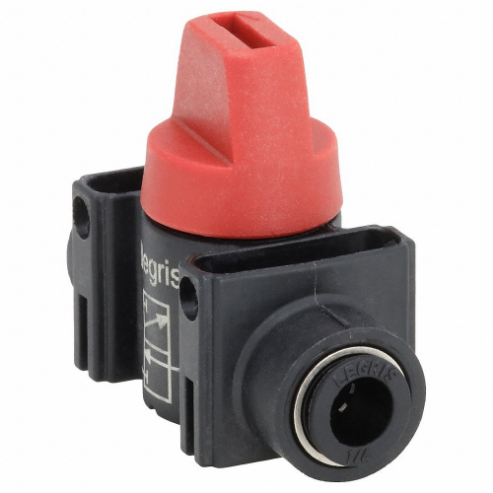

LEGRIS 7913 56 00 Mini Ball Valve, 1/4 Inch Tube, Full, 145 Psi Cwp, -4 Deg F To 176 Deg F, Push | CR8RRD 1PGB3 7913 56 00PolymerPush x Push145 psiGraphitePolymer2"Buna N-€69.86

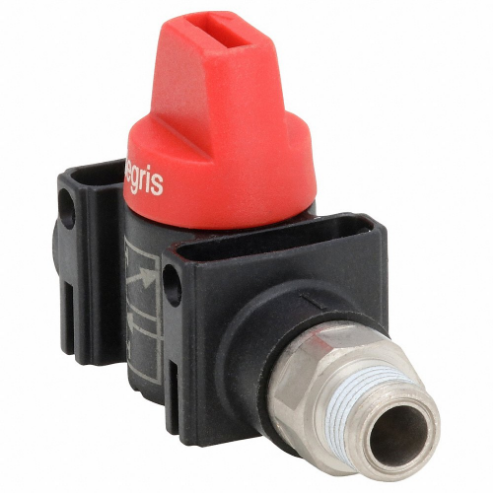

LEGRIS 7915 56 11 Mini Ball Valve, 1/8 Inch Pipe, 1/4 Inch Tube, Full, 145 Psi Cwp, -4 Deg F To 176 Deg F | CR8RRE 1PGB5 7915 56 11NylonMNPT x Push145 psiBuna NPolymer2.44"Buna N1/8"€73.66
