LEGRIS 7665 06 13 Miniature Flow Control, Bspt X Tube, 1/4 Inch Valve Port Size, 6 mm Valve Tube Size
Item: CR8QDVModel: 7665 06 13Cross Ref: 19G993
7 In Stock
Ships within 2 days via
10.00% off
€39.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flow Control |
| Adjustment | Screw |
| Adjustment Type | Screw |
| Air Connection Type | Tube |
| Air Cylinder Connection | 1/4" BSPT |
| Air Line Connection | 6 mm Tube |
| Body Material | Technical Polymer |
| Body Material Finish | Nickel Plated |
| Connection Type | BSPT x Tube |
| Fitting Style | Elbow |
| Flow Direction | Out |
| Maximum Flow Rate | 55.8 CFM |
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 70°C |
| Metering Direction | Meter Out |
| Minimum Flow Rate | Not Applicable |
| Minimum Operating Pressure | 14.5 psi |
| Minimum Operating Temperature | 0°C |
| Panel Mountable | Panel Mountable |
| Panel Mounting | Panel Mountable |
| Pressure Range | 14.5 psi to 145 psi |
| Seal Material | PTFE |
| Temp. Range | +30°F to +158°F |
| Valve Body Material | Nickel Plated Brass |
| Valve Body Size | 6 mm |
| Valve Flow | Out |
| Valve Style | Elbow |
| Valve Tube Size | 6 mm |
Shipping Info:
| Ship height (cm) | 3.18 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 1.27 |
| Country of Origin | CN |
Product Variants
| Product | Model | Valve Tube Size | Body Material | Pressure Range | Adjustment | Connection Type | Flow Direction | Valve Body Material | Valve Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

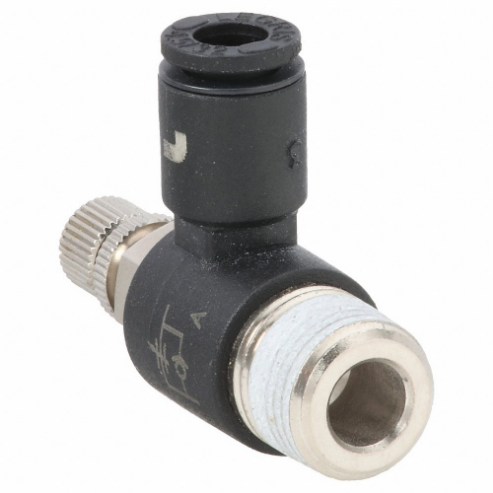

7665 04 10 | 4 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €41.32 | |
|
7665 06 10 | 6 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €44.22 | |
|
7665 08 10 | 8 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €48.32 | |
 |

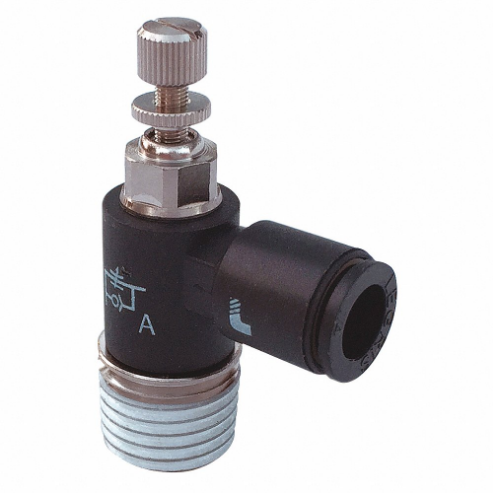

7665 06 17 | 6 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €75.13 | |
|
7665 08 13 | 8 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €48.64 | |
|
7665 08 17 | 8 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €58.75 | |
 |
7065 10 21 | 10 mm | Technical Polymer | 14.5 psi to 145 psi | Screw | BSPT x Tube | Out | Nickel Plated Brass | Out | €94.14 |
