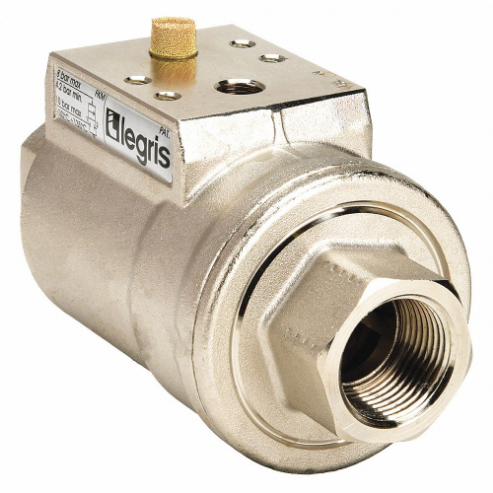

LEGRIS 4203 10 18 20 Axial Valve, FNPT x FNPT, 3/8 Inch x 3/8 Inch Pipe Size
Item: CR8PXQModel: 4203 10 18 20Cross Ref: 1DFR9
7 In Stock
Ships within 2 days via
10.00% off
€493.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Axial Valve |
| Basic Pipe Fitting Material | Metal |
| Body Material | Nickel Plated Brass |
| Connection Type | FNPT x FNPT |
| Hex Size | 22 mm |
| Inlet Connection | 3/8" FNPT |
| Max. Media Temperature | 275°F |
| Max. Operating Pressure | 150 psi |
| Max. Pilot Pressure | 115 psi |
| Max. Pressure | 150 psi |
| Media Temperature Range | -4°F to +275°F |
| Min. Media Temperature | -4°F |
| Min. Pilot Pressure | 60 psi |
| Outlet Connection | 3/8" |
| Outlet Connection Type | FNPT |
| Overall Height | 2 3/25" |
| Overall Length | 3 3/5" |
| Pilot Port Size | 1/8" FNPT |
| Pilot Port Type | BSPP |
| Pilot Pressure | 60 psi to 115 psi |
| Pilot Pressure Range | 60 psi to 115 psi |
| Pipe Size | 3/8" x 3/8" |
| Seal Material | FKM |
| Temp. Range | +15°F to +275°F |
| Valve Configuration | Normally Closed |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 9.8 |
| Country of Origin | IT |
Product Variants
| Model | Connection Type | Pipe Size | Overall Height | Overall Length | Max. Pressure | Pilot Pressure | Seal Material | Pilot Port Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

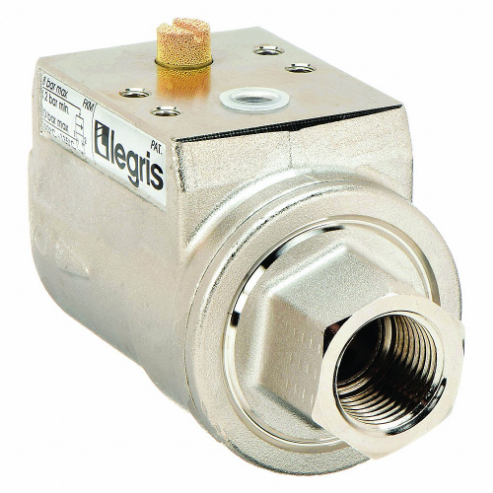

| 4202 15 21 20 | BSPP x BSPP | 1/2" x 1/2" | 60" | 112" | 150 psi | 60 psi to 115 psi | FKM | BSPP | €765.52 | |
| 4203 50 44 20 | FNPT x FNPT | 2" x 2" | 4 1/2" | 7.39" | 150 psi | 60 psi to 115 psi | FKM | BSPP | €1,544.72 | |
| 4203 20 28 20 | FNPT x FNPT | 3/4" x 3/4" | 2 19/25" | 4.92" | 150 psi | 60 psi to 115 psi | FKM | BSPP | €671.02 |
