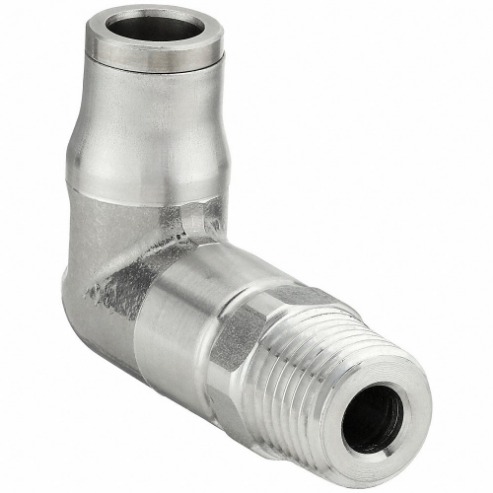

LEGRIS 3809 06 13 Metric Stainless Steel Push-to-Connect Fitting, 316L Stainless Steel
Item: CR8TGAModel: 3809 06 13Cross Ref: 791TG7
7 In Stock
Ships within 2 days via
5.00% off
€194.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Beverage, Food Processing |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | BSPT |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outside Dia. | 6 mm |
| Fitting Thread Size | R1/4 |
| Grade | Grade 316L |
| Included Pre-applied Thread Sealant | No |
| Length | 34 mm |
| Material | Stainless Steel |
| Material Grade | 316L |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 34 mm |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3800 |
| System Of Measurement | Metric |
| Thread Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 3.4 |
| Ship length (cm) | 3.4 |
| Ship width (cm) | 3.4 |
| Country of Origin | FR |
Product Variants
| Product | Model | Fitting Side B Connection Type | Fitting Side A Connection Type | Fitting Side B Tube Outside Dia. | Fitting Thread Size | Fitting Side A Pipe Size | Max. Operating Pressure | Color | Fitting Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

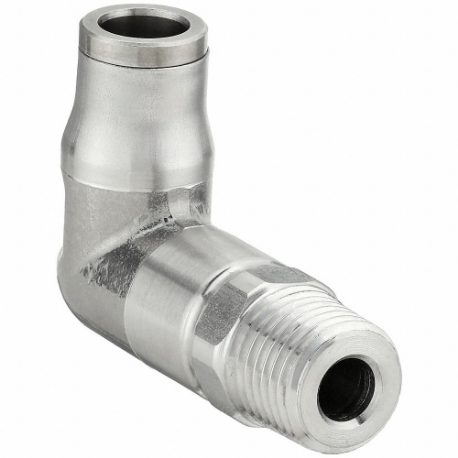

3809 06 14 | Push To Connect | MNPT | 6 mm | NPT1/4 | 1/4" | 435 psi | Silver | Stainless Steel | €210.46 | |
|
3809 10 18 | Push-To-Connect | MNPT | 10 mm | NPT3/8 | 3/8" | 435 psi | Silver | Stainless Steel | €340.19 | |
|
3809 08 11 | Push To Connect | - | 5/16" | NPT1/8 | 1/8" | 435 psi | Silver | Stainless Steel | €232.64 | |
|
3809 08 14 | Push To Connect | - | 5/16" | NPT1/4 | 1/4" | 435 psi | Silver | Stainless Steel | €253.44 | |
|
3809 10 14 | Push-To-Connect | MNPT | 10 mm | NPT1/4 | 1/4" | 435 psi | Silver | Stainless Steel | €382.82 | |
 |
3809 10 13 | Push To Connect | BSPT | 10 mm | R1/4 | - | 435 psi | Silver | Stainless Steel | €349.18 | |
|
3809 08 13 | Push To Connect | BSPT | 8 mm | R1/4 | - | 435 psi | Silver | Stainless Steel | €222.20 |
