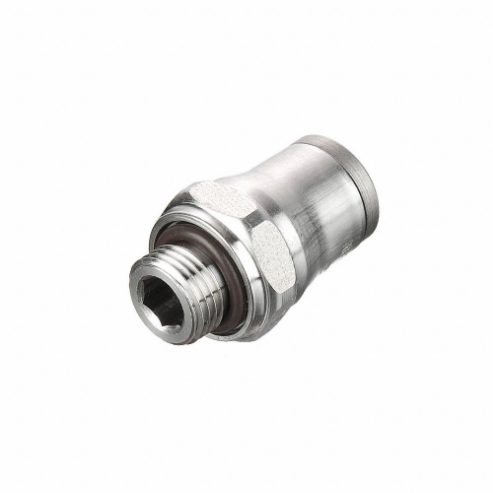

LEGRIS 3801 06 10 Metric Stainless Steel Push-to-Connect Fitting, 316L Stainless Steel
Item: CR8TGBModel: 3801 06 10Cross Ref: 791TE1
7 In Stock
Ships within 2 days via
10.00% off
€106.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Beverage, Food Processing |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 6 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Thread Size | G1/8 |
| Grade | Grade 316L |
| Includes Pre-applied Thread Sealant | No |
| Length | 18 mm |
| Material Grade | 316L |
| Max. Operating Pressure | 435 psi |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | -4°F |
| Overall Length | 18 mm |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Sub-brand | Lf3800 |
| System Of Measurement | Metric |
| Thread Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Overall Length | Fitting Side A Pipe Size | Fitting Side B Connection Type | Fitting Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3801 06 13 | Push To Connect | 6 mm | G1/4 | 18 mm | 6 mm | BSPP | Stainless Steel | 435 psi | €146.11 | |
| 3801 12 17 | Push To Connect | 12 mm | G3/8 | 26.5 mm | 12 mm | BSPP | Stainless Steel | 435 psi | €264.56 | |
| 3801 08 17 | Push To Connect | 8 mm | G3/8 | 20 mm | 8 mm | - | Stainless Steel | 435 psi | €217.83 | |
| 3801 08 10 | Push To Connect | 8 mm | G1/8 | 19 mm | 8 mm | BSPP | Stainless Steel | 435 psi | €157.04 | |
| 3801 06 19 | Metric | 6 mm | M5 | 20.5 mm | 5 mm | Push To Connect | Stainless Steel | 435 psi | €91.47 | |
| 3801 12 13 | Push To Connect | 12 mm | G1/4 | 27 mm | 12 mm | BSPP | Stainless Steel | 435 psi | €276.21 |
