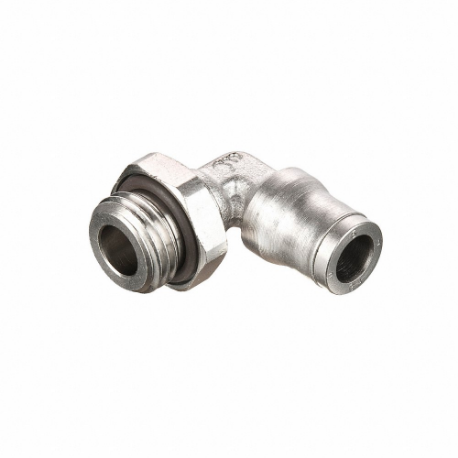

LEGRIS 3699 56 13 Fractional All Metal Push-to-Connect Fitting, Nickel Plated Brass, Push-to-Connect x BSPP
Item: CN8FXYModel: 3699 56 13Cross Ref: 791TD3
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4" |
| Length | 19.5 mm |
| Material | Brass |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -13°F |
| Overall Length | 19.5 mm |
| Release Ring Material | Nickel Plated |
| Release Type | Collet |
| Resistance Properties | Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | 90° Elbow |
| Sub-brand | Lf3600 |
| System Of Measurement | Imperial |
| Thread Size | 1/4" |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Operating Pressure | Specific Fitting Shape | Min. Operating Temp. | Fitting Side A Connection Type | Fitting Side B Connection Type | Vacuum Rating | Fitting Thread Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3699 04 56 | 20 BarG | Elbow Adapter | -4°F | Metric | Push To Connect | 755 mm hg | M8 | 18 mm | €30.52 | |
| 3699 56 10 | 20 BarG | Elbow Adapter | -13°F | Push To Connect | BSPP | 755 mm hg | - | - | €24.66 | |
| 3699 14 17 | 20 BarG | Elbow Adapter | -4°F | Push To Connect | BSPP | 755 mm hg | G3/8 | 29 mm | €60.66 | |
| 3699 14 21 | 20 BarG | Elbow Adapter | -4°F | Push To Connect | BSPP | 755 mm hg | G1/2 | 29.5 mm | €64.36 | |
| 3699 12 17 | 20 BarG | Elbow Adapter | -4°F | Push To Connect | BSPP | 755 mm hg | G3/8 | 28.5 mm | €51.51 | |
| 3699 04 10 | 435 psi | Swivel Elbow Adapter | 13°F | Push To Connect | MBSPP | 28 in. hg | 1/8" | 17 mm | €15.70 |
