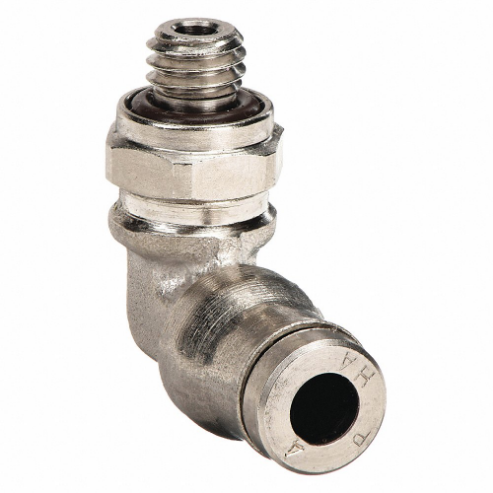

LEGRIS 3699 04 52 Male Elbow, Nickel Plated Brass, Push-To-Connect X Male Metric, 6 mm Pipe Size
Item: CN8EBXModel: 3699 04 52Cross Ref: 18E489
7 In Stock
Ships within 2 days via
5.00% off
€26.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outside Dia. | 4 mm |
| Fitting Side B Connection Type | Male Metric |
| Fitting Side B Pipe Size | 6 mm |
| Fitting Thread Size | 6 |
| Included Pre-applied Thread Sealant | No |
| Length | 18 mm |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 435 psi |
| Min. Operating Temp. | 13°F |
| Overall Length | 18 mm |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Metric |
| Vacuum | 28 in. hg |
| Vacuum Pressure | 28 in. hg |
Shipping Info:
| Ship height (cm) | 1.8 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | ES |
Product Variants
| Product | Model | Fitting Side A Connection Type | Fitting Material | Max. Operating Pressure | Min. Operating Temp. | Specific Fitting Shape | Max. Operating Temp. | Fitting Side A Tube Outside Dia. | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3699 08 13 | Push-To-Connect | Brass | 435 psi | 13°F | Elbow Adapter | 302°F | 8 mm | 1/4" | 1 | €30.55 | |
 |
3199 04 13 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 4 mm | 1/4" | 10 | €218.35 | |
 |
3109 06 13 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 6 mm | 1/4" | 10 | €122.50 | |
|
3109 12 21 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 12 mm | 1/2" | 10 | €381.14 | |
|
3199 14 17 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 14 mm | 3/8" | 10 | €333.69 | |
 |
3113 08 13 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 8 mm | 1/4" | 10 | €133.42 | |
|
3199 12 21 | Push-To-Connect | Nylon | 290 psi | 4°F | Elbow Adapter | 175°F | 12 mm | 1/2" | 10 | €341.21 |
