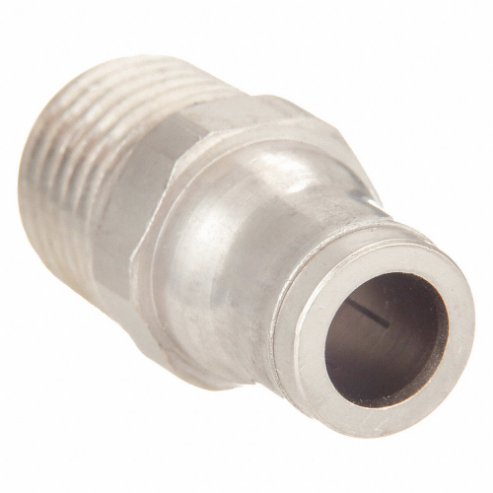

LEGRIS 3675 60 18 Male Connector, Nickel Plated Brass, Push-to-Connect x MNPT, 3/8 Inch Size Tube OD
Item: CR8RMRModel: 3675 60 18Cross Ref: 3ZNV5
7 In Stock
Ships within 2 days via
10.00% off
€19.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Connector |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 3/8" |
| Fitting Thread Size | 3/8" |
| Includes Pre-applied Thread Sealant | No |
| Length | 0.906" |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 435 psi |
| Maximum Operating Pressure | 435 psi |
| Minimum Operating Temperature | 13°F |
| Overall Length | 29/32" |
| Release Ring Material | FKM |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial |
| Vacuum Pressure | 28 in. hg |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 1.27 |
| Country of Origin | ES |
Product Variants
| Product | Model | Temp. Range | Connection Type | Tube Size | Color | Fitting Side B Pipe Size | Fitting Thread Size | Fitting Material | Fitting Side A Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3675 12 13 | -4°F to +302°F | Tube x BSPT | 12 mm | Silver | 1/4" | 1/4" | Brass | Push-To-Connect | 1 | €20.16 | |
 |
3101 04 10 | -4°F to +175°F | Tube x MNPT | 4 mm | Black | 1/8" | 1/8" | Nylon | Push-To-Connect | 10 | €100.84 | |
|
3101 08 13 | -4°F to +175°F | Tube x MNPT | 8 mm | - | - | - | - | - | 10 | €167.67 | |
|
3101 10 13 | -4°F to +175°F | Tube x MNPT | 10 mm | Black | 1/4" | 1/4" | Nylon | Push-To-Connect | 10 | €269.58 | |
 |
3675 08 13 | -4°F to +302°F | Tube x BSPT | 8 mm | Silver | 1/4" | 1/4" | Brass | Push-To-Connect | 1 | €17.66 | |
 |
3175 08 10 | -4°F to +175°F | Tube x Male BSPT | 8 mm | Black | 1/8" | 1/8" | Nylon | Push-To-Connect | 10 | €157.88 | |
 |
3175 12 21 | -4°F to +175°F | Tube x Male BSPT | - | Silver | 1/2" | 1/2" | Nylon | Push-To-Connect | 10 | €270.54 |
