LEGRIS 3667 06 56 Plug-In Adapter, Nickel Plated Brass, Push-to-Connect x Push-to-Connect
Item: CR8TADModel: 3667 06 56Cross Ref: 3ZNT9
7 In Stock
Ships within 2 days via
10.00% off
€17.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Adapter |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Nylon, Stainless Steel |
| Finish, Coating | Nickel Plated |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Length | 38 mm |
| Material | Brass |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | 13°F |
| Release Ring Material | FKM |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial/Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.7 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 3.18 |
| Country of Origin | ES |
Product Variants
| Product | Model | Max. Operating Pressure | Min. Operating Temp. | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Vacuum Rating | Max. Operating Temp. | Fitting Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

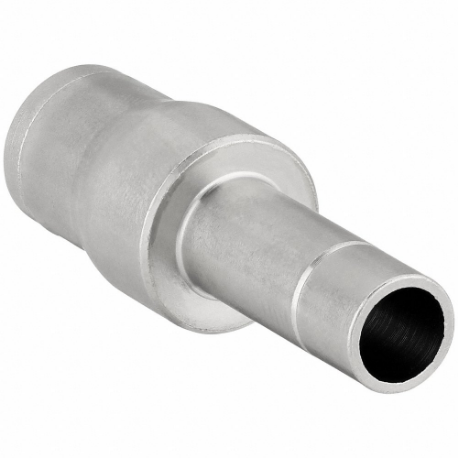

3667 10 60 | 30 BarG | -4°F | 3/8" | 10 mm | 755 mm hg | 302°F | Brass | Silver | €22.27 |
