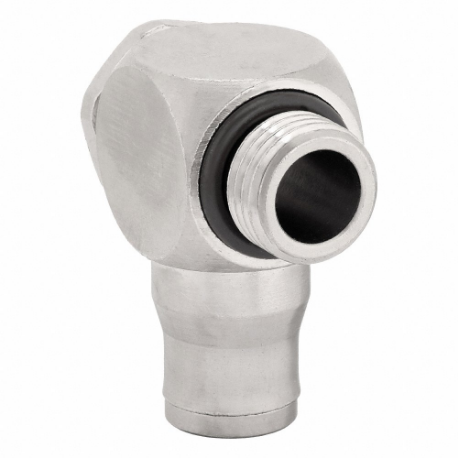

LEGRIS 3618 08 10 Metric All Metal Push-to-Connect Fitting, Nickel Plated Brass, Push-to-Connect x BSPP
Item: CN8FZZModel: 3618 08 10Cross Ref: 791T99
7 In Stock
Ships within 2 days via
10.00% off
€34.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Grease, Lubricant, Non-Potable Water |
| Color | Silver |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 8 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Thread Size | G1/8 |
| Length | 36 mm |
| Material | Brass |
| Max. Operating Pressure | 30 BarG |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 36 mm |
| Resistance Properties | Abrasion-Resistant, Corrosion-Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Banjo Elbow Adapter |
| Sub-brand | Lf3600 |
| System Of Measurement | Metric |
| Thread Size | 1/8" |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Overall Length | Fitting Side A Pipe Size | Fitting Side B Connection Type | Fitting Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

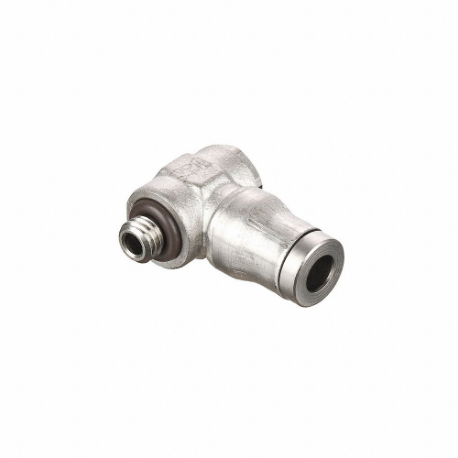

| 3618 04 19 | Metric | 4 mm | M5 | 24.5 mm | 5 mm | Push To Connect | Brass | 30 BarG | €25.25 | |
| 3618 08 13 | Push To Connect | 8 mm | G1/4 | 40.5 mm | 8 mm | BSPP | Brass | 30 BarG | €41.14 | |
| 3618 10 17 | Push To Connect | 10 mm | G3/8 | 45 mm | 10 mm | - | Brass | 30 BarG | €58.68 | |
| 3618 06 13 | Push To Connect | 6 mm | G1/4 | 38.5 mm | 6 mm | BSPP | Brass | 30 BarG | €42.46 | |
| 3618 04 10 | Push To Connect | 4 mm | G1/8 | 30.5 mm | 4 mm | BSPP | Brass | 30 BarG | €38.75 | |
| 3618 06 19 | Metric | 6 mm | M5 | 28.5 mm | 5 mm | Push To Connect | Brass | 30 BarG | €34.86 |
