LEGRIS 3199 06 60 Elbow, Nylon, Push-to-Connect x Male, 6mm Tube OD, 10mm Pipe Size, Black
Item: CJ2BHLModel: 3199 06 60Cross Ref: 1DEU1
7 In Stock
Ships within 2 days via
10.00% off
€212.29 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 90 Degree Elbow |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Male Metric |
| Fitting Side B Pipe Size | 10 mm |
| Fitting Thread Size | 10" |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 14 mm |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
Product Variants
| Product | Model | Overall Length | Fitting Material | Vacuum Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|
 |
3182 06 00 | 26.5 mm | Nylon | 28 in. hg | 10 | €44.85 | |
 |
3109 53 08 | 17/32" | Nylon | 28 in. hg | 10 | €177.93 | |
 |

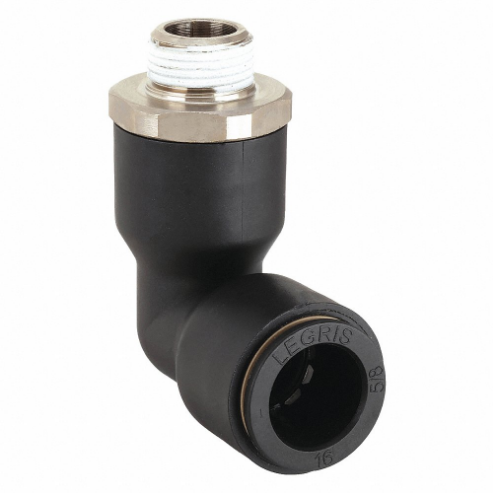

3109 16 17 | - | - | - | 1 | €70.50 | |
 |

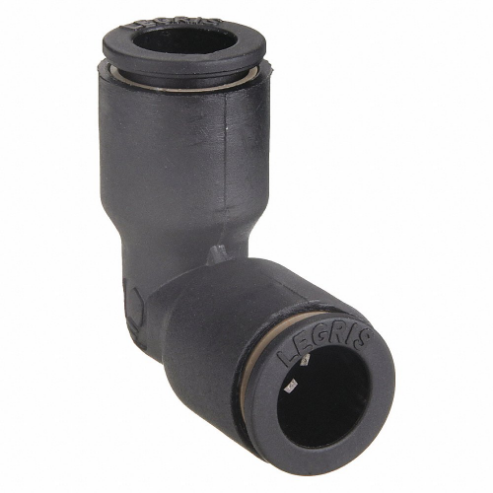

3102 04 00 | 19 mm | Nylon | 28 in. hg | 10 | €90.59 | |
 |

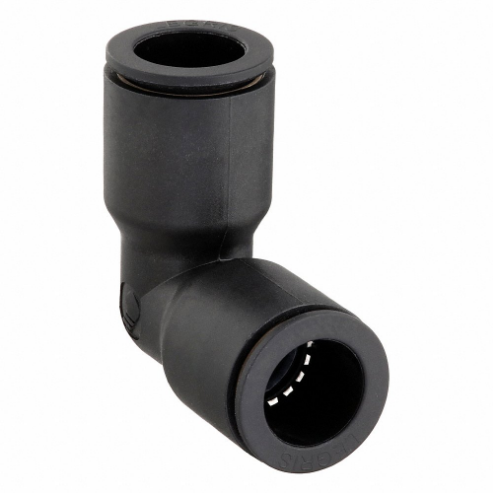

3102 10 00 | 34.5 mm | Nylon | 28 in. hg | 10 | €242.58 | |
|
3102 53 00 | 23/32" | Nylon | 28 in. hg | 10 | €110.64 | |
 |

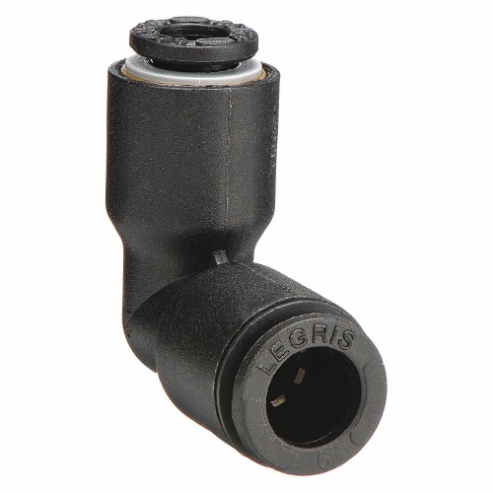

3102 04 06 | 22.5 mm | Nylon | 28 in. hg | 10 | €80.56 |
