LEGRIS 3189 08 13 Push-to-Connect Fitting, Polymer, Push-to-Connect x BSPP, 8 mm Tube OD
Item: CR8QYFModel: 3189 08 13Cross Ref: 791RL7
7 In Stock
Ships within 2 days via
10.00% off
€72.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 8 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Thread Size | G1/4 |
| Length | 31 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 31 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Imperial/Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Overall Length | Fitting Side A Pipe Size | Fitting Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3189 04 19 | Metric | Push To Connect | 4 mm | M5 | 24.5 mm | 5 mm | Polymer | 20 BarG | €65.34 | |
| 3189 10 13 | Push To Connect | BSPP | 10 mm | G1/4 | 50 mm | 10 mm | Polymer | 20 BarG | €98.96 | |
| 3189 10 17 | Push To Connect | BSPP | 10 mm | G3/8 | 37 mm | 10 mm | Polymer | 20 BarG | €107.36 | |

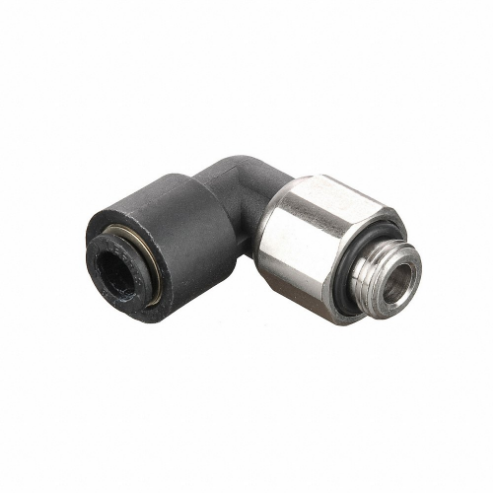

| 3189 12 17 | Push To Connect | BSPP | 12 mm | G3/8 | 45.5 mm | 12 mm | Polymer | 20 BarG | €112.46 | |
| 3189 04 10 | Push To Connect | BSPP | 4 mm | G1/8 | 23 mm | 4 mm | Polymer | 20 BarG | €62.10 | |
| 3189 08 17 | Push To Connect | BSPP | 8 mm | G3/8 | 29.5 mm | 8 mm | Polymer | 20 BarG | €93.55 | |
| 3189 08 10 | Push To Connect | BSPP | 8 mm | G1/8 | 33.5 mm | 8 mm | Polymer | 20 BarG | €70.70 |
