LEGRIS 3188 06 08 Metric Push-to-Connect Fitting, Polymer
Item: CR8QLRModel: 3188 06 08Cross Ref: 791RL0
7 In Stock
Ships within 2 days via
10.00% off
€9.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Packaging, Robotics, Semi-Conductors, Textile, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Side C Connection Type | Push To Connect |
| Fitting Side C Tube Outer Diameter | 8 mm |
| Includes Pre-applied Thread Sealant | No |
| Length | 1.812" |
| Material | Polymer |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 1 13/16" |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Material | Fitting Side B Tube Outer Diameter | Vacuum Rating | Overall Length | Fitting Side C Tube Outer Diameter | Material | Max. Operating Pressure | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3188 53 00 | Nylon | 1/8" | 28 in. hg | 1 1/8" | 1/8" | Nylon | 290 psi | 176°F | €7.62 | |
| 3188 62 00 | Nylon | 1/2" | 28 in. hg | 2 3/4" | 1/2" | - | 290 psi | 176°F | €14.13 | |
| 3188 04 00 | Polymer | 5/32" | 755 mm hg | 1 1/8" | 5/32" | Polymer | 290 psi | 176°F | €7.26 | |
| 3188 10 00 | Polymer | 10 mm | 755 mm hg | 2 1/16" | 10 mm | Polymer | 290 psi | 176°F | €11.64 | |
| 3188 06 00 | Polymer | 6 mm | 755 mm hg | 1 1/4" | 6 mm | Polymer | 290 psi | 176°F | €9.71 | |

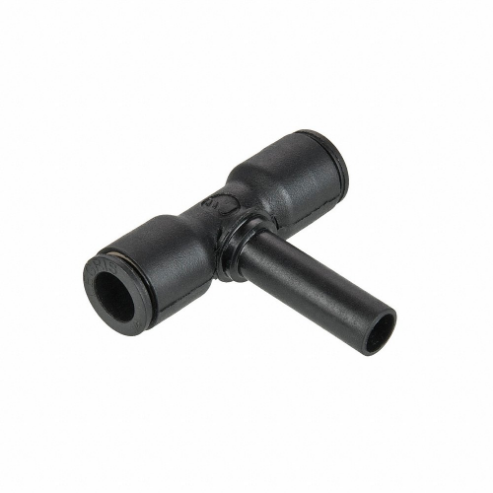

| 3188 04 06 | Polymer | 4 mm | 755 mm hg | 1 1/4" | 6 mm | Polymer | 290 psi | 176°F | €8.91 | |
| 3188 12 00 | Polymer | 12 mm | 755 mm hg | 2 7/16" | 12 mm | Polymer | 290 psi | 176°F | €12.77 |
