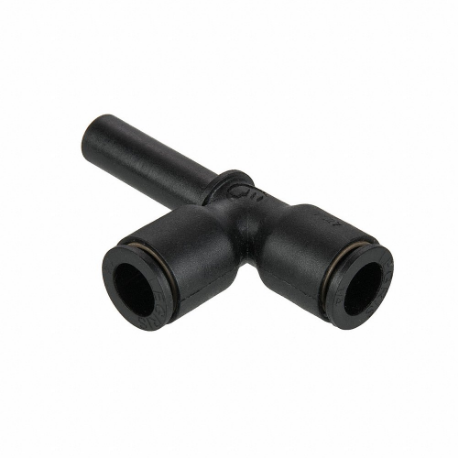

LEGRIS 3183 06 08 Metric Push-to-Connect Fitting, Polymer
Item: CR8QLTModel: 3183 06 08Cross Ref: 791RJ7
7 In Stock
Ships within 2 days via
10.00% off
€10.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Packaging, Robotics, Semi-Conductors, Textile, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Side C Connection Type | Push To Connect |
| Fitting Side C Tube Outer Diameter | 8 mm |
| Includes Pre-applied Thread Sealant | No |
| Length | 1 7/8" |
| Material | Polymer |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 1 7/8" |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Vacuum Rating | Overall Length | Fitting Side C Connection Type | Fitting Side C Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3183 56 00 | Nylon | Push-To-Connect | Tube Stem | 28 in. hg | 1 11/16" | Push-To-Connect | 1/4" | - | 10 | €70.38 | |
| 3183 04 06 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 1 1/2" | Push To Connect | 6 mm | 4 mm | 1 | €9.91 | |
| 3183 10 00 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 2 3/16" | Push To Connect | 10 mm | 10 mm | 1 | €9.20 | |
| 3183 12 00 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 2 9/16" | Push To Connect | 12 mm | 12 mm | 1 | €10.63 | |
| 3183 04 00 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 1 1/4" | Push To Connect | 5/32" | 5/32" | 1 | €5.91 | |
| 3183 08 10 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 2 3/16" | Push To Connect | 10 mm | 8 mm | 1 | €11.49 | |
| 3183 06 00 | Polymer | Push To Connect | Push To Connect | 755 mm hg | 1 1/2" | Push To Connect | 6 mm | 6 mm | 1 | €6.73 |
