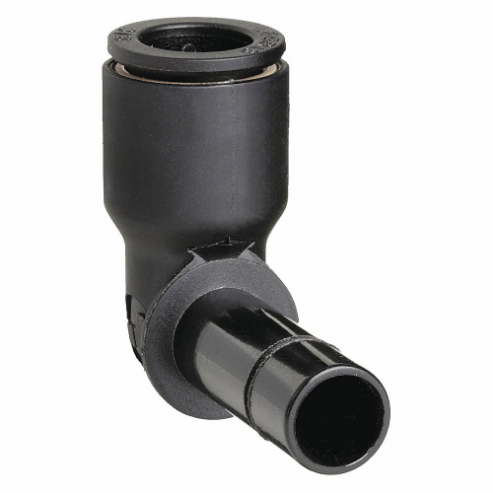

LEGRIS 3182 56 60 Elbow, Nylon, Push-to-Connect x Tube Stem, 1/4 x 3/8 Inch Tube OD, Black
Item: CJ2BJDModel: 3182 56 60Cross Ref: 1DDU5
7 In Stock
Ships within 2 days via
5.00% off
€87.77 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 90 Degree Elbow |
| Application | Air |
| Color | Black |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | Tube Stem |
| Fitting Side B Tube Outside Dia. | 3/8" |
| Included Pre-applied Thread Sealant | No |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | 4°F |
| Overall Length | 1 17/32" |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial |
| Vacuum | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fitting Side B Connection Type | Max. Operating Temp. | Min. Operating Temp. | Max. Operating Pressure | Included Pre-applied Thread Sealant | Fitting Side A Tube Outside Dia. | Specific Fitting Shape | Fitting Side B Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3182 06 00 | Tube Stem | 176°F | 4°F | 290 psi | No | 6 mm | Elbow Adapter | 6 mm | 10 | €44.85 | |
 |
3109 53 08 | MNPT | 175°F | 4°F | 290 psi | Yes | 1/8" | Elbow Adapter | - | 10 | €177.93 | |
 |
3109 16 17 | MBSPT | 175°F | 4°F | - | - | - | - | - | 1 | €70.50 | |
 |
3102 04 00 | Push-To-Connect | 176°F | 4°F | 290 psi | No | 4 mm | Elbow | 4 mm | 10 | €90.59 | |
 |
3102 10 00 | Push-To-Connect | 176°F | 4°F | 290 psi | No | 10 mm | Elbow | 10 mm | 10 | €242.58 | |
|
3102 53 00 | Push-To-Connect | 176°F | 4°F | 290 psi | No | 1/8" | Elbow | 1/8" | 10 | €110.64 | |
 |
3102 04 06 | Push-To-Connect | 176°F | 4°F | 290 psi | No | 4 mm | Elbow | 6 mm | 10 | €80.56 |
