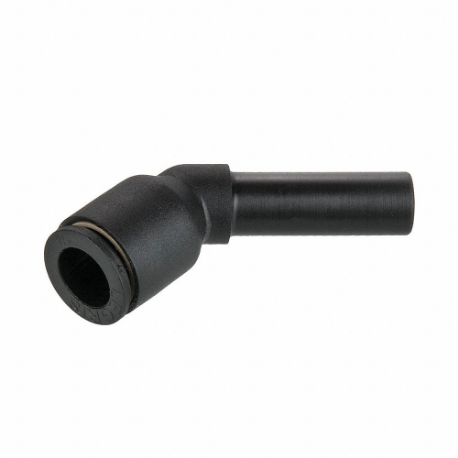

LEGRIS 3180 06 00 Metric Push-to-Connect Fitting, Polymer, Push-to-Connect x Push-to-Connect
Item: CR8QXJModel: 3180 06 00Cross Ref: 791RH3
7 In Stock
Ships within 2 days via
10.00% off
€4.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Length | 39 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 39 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Overall Length | Material | Vacuum Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3180 12 00 | Polymer | 20 BarG | 176°F | 12 mm | 12 mm | 58.5 mm | Polymer | 755 mm hg | €17.33 | |
| 3180 10 00 | Polymer | 20 BarG | 176°F | 10 mm | 10 mm | 53 mm | Polymer | 755 mm hg | €7.10 | |
| 3180 08 00 | Polymer | 20 BarG | 176°F | 5/16" | 5/16" | 44 mm | Polymer | 755 mm hg | €5.74 | |
| 3180 04 00 | Polymer | 20 BarG | 176°F | 5/32" | 5/32" | 33.5 mm | Polymer | 755 mm hg | €4.32 | |
| 3180 53 00 | Nylon | 290 psi | 175°F | 1/8" | 1/8" | 1 1/8" | Nylon | 28 in. hg | €5.70 | |
| 3180 60 00 | Polymer | 20 BarG | 176°F | 3/8" | 3/8" | 2" | Polymer | - | €7.61 | |
| 3180 56 00 | Nylon | 290 psi | 175°F | 1/4" | 1/4" | 1 7/16" | Nylon | 28 in. hg | €5.15 |
