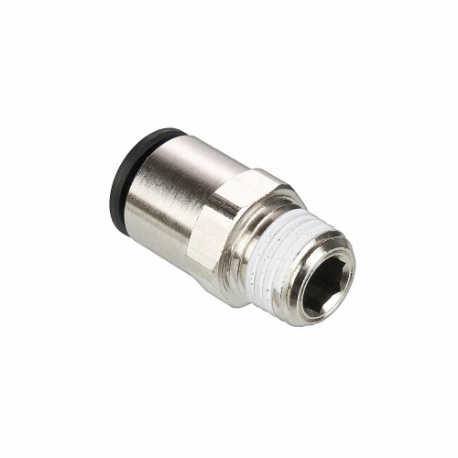

LEGRIS 3175 10 17 Nickel Plated Brass, BSPT x Push-to-Connect, 10 mm Tube OD, 16 1/2 mm Overall Length
Item: CN8GCEModel: 3175 10 17Cross Ref: 791RH0
7 In Stock
Ships within 2 days via
5.00% off
€17.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | BSPT |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outside Dia. | 10 mm |
| Fitting Thread Size | R3/8 |
| Included Pre-applied Thread Sealant | Yes |
| Length | 16.5 mm |
| Material | Brass |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 16.5 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Shape | Straight Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Thread Sealant Type | PTFE |
| Thread Size | 3/8" |
| Vacuum | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Operating Pressure | Color | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Thread Size | Specific Fitting Shape | Max. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3175 04 11 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/8" | Straight Adapter | 175°F | 10 | €63.67 | |
| 3175 53 08 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/16" | Straight Adapter | 175°F | 10 | €105.56 | |
| 3175 53 11 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/8" | Straight Adapter | 175°F | 10 | €69.67 | |
| 3175 53 14 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/4" | Straight Adapter | 175°F | 10 | €120.47 | |
| 3175 56 11 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/8" | Straight Adapter | 175°F | 10 | €83.85 | |
| 3175 60 11 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/8" | Straight Adapter | 175°F | 10 | €172.06 | |
| 3175 60 14 | 290 psi | Black | Nylon | Push-To-Connect | MNPT | 1/4" | Straight Adapter | 175°F | 10 | €140.09 |
