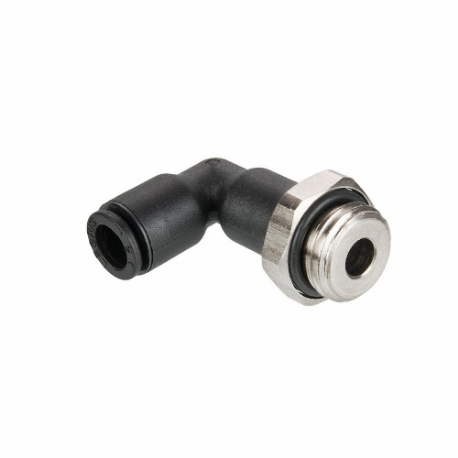

LEGRIS 3169 08 10 Push-to-Connect Fitting, Polymer, Push-to-Connect x BSPP, 8 mm Tube OD
Item: CR8QVLModel: 3169 08 10Cross Ref: 791RF4
7 In Stock
Ships within 2 days via
10.00% off
€12.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 8 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Thread Size | G1/8 |
| Length | 36 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 36 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Metric |
| Thread Size | 1/8" |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Material | Overall Length | Specific Fitting Shape | Fitting Side A Connection Type | Release Type | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Vacuum Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

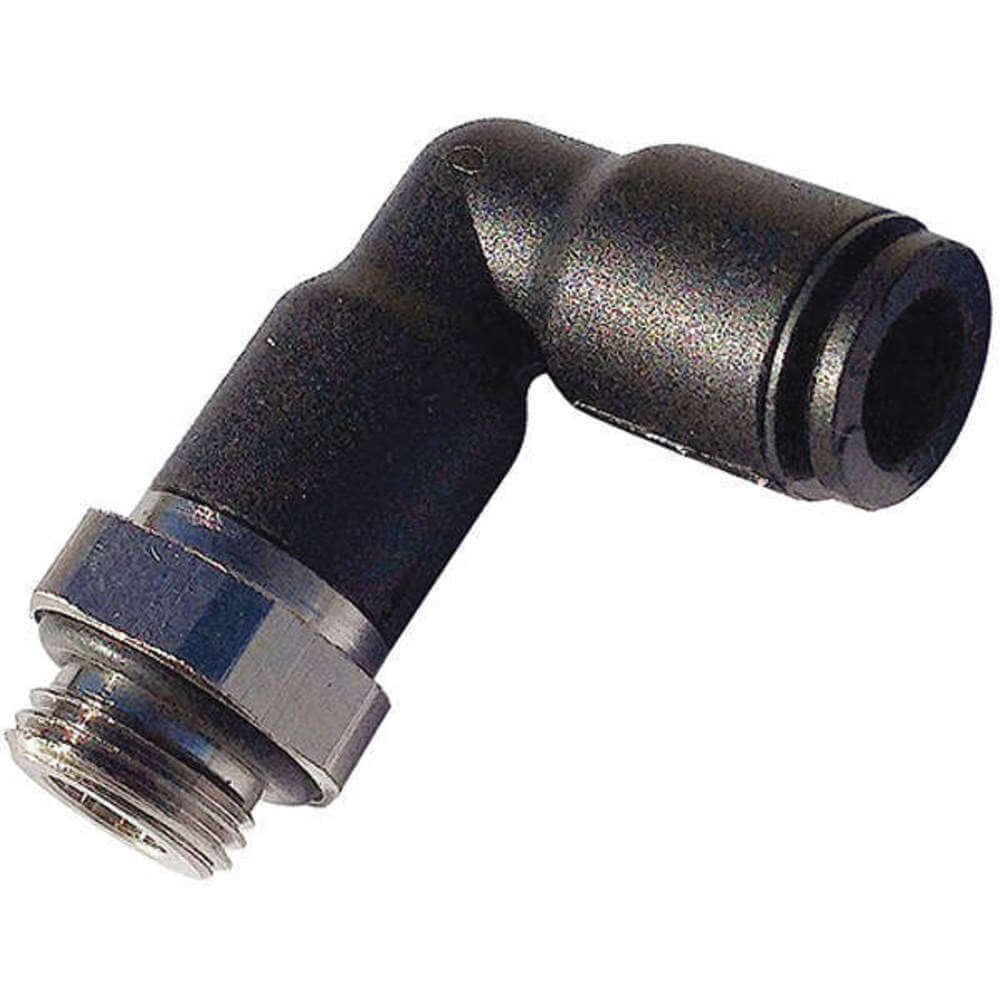

| 3169 04 20 | Nylon | 1 3/32" | 90° Extended Elbow Adapter | Push-To-Connect | Button | - | - | 28 in. hg | 10 | €248.62 | |
| 3169 06 19 | Polymer | 27.5 mm | Elbow Adapter | Metric | - | 6 mm | M5 | 755 mm hg | 1 | €14.13 | |
| 3169 06 55 | Polymer | 26 mm | Elbow Adapter | Metric | Ring | 6 mm | M7 | 755 mm hg | 1 | €12.18 | |
| 3169 10 21 | Polymer | 40.5 mm | Elbow Adapter | Push To Connect | Ring | 10 mm | G1/2 | 755 mm hg | 1 | €29.47 | |
| 3169 10 13 | Polymer | 40.5 mm | - | Push To Connect | Ring | 10 mm | G1/4 | 755 mm hg | 1 | €21.32 | |
| 3169 10 17 | Polymer | 40.5 mm | Elbow Adapter | Push To Connect | Ring | 10 mm | G3/8 | 755 mm hg | 1 | €26.50 | |
| 3169 12 13 | Polymer | 44.5 mm | Elbow Adapter | Push To Connect | Ring | 12 mm | G1/4 | 755 mm hg | 1 | €28.27 |
