LEGRIS 3166 06 10 Metric Push-to-Connect Fitting, Polymer, Push-to-Connect x Push-to-Connect
Item: CR8QXKModel: 3166 06 10Cross Ref: 791RE0
7 In Stock
Ships within 2 days via
10.00% off
€6.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Length | 38 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 38 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Shape | Reducer |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Fitting Side B Connection Type | Vacuum Rating | Overall Length | Specific Fitting Shape | Fitting Side A Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

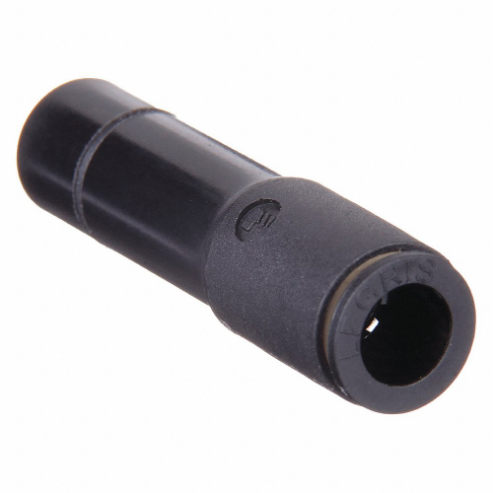

| 3166 06 08 | Nylon | - | - | Tube Stem | 28 in. hg | 36 mm | Straight Adapter | Push-To-Connect | 10 | €70.85 | |
| 3166 56 60 | Nylon | - | - | Tube Stem | 28 in. hg | 1 5/8" | Straight Adapter | Push-To-Connect | 10 | €35.78 | |
| 3166 08 10 | Nylon | - | - | Tube Stem | 28 in. hg | 49 mm | Straight Adapter | Push-To-Connect | 10 | €90.99 | |
| 3166 56 62 | Nylon | - | - | Tube Stem | 28 in. hg | 1 31/32" | Straight Adapter | Push-To-Connect | 10 | €153.51 | |
| 3166 53 56 | Nylon | - | - | Tube Stem | 28 in. hg | 1 25/32" | Straight Adapter | Push-To-Connect | 10 | €141.41 | |
| 3166 04 08 | Nylon | - | - | Tube Stem | 28 in. hg | 1 15/32" | Straight Adapter | Push-To-Connect | 10 | €70.70 | |
| 3166 04 56 | Nylon | - | - | Tube Stem | 28 in. hg | 1 15/32" | Straight Adapter | Push-To-Connect | 10 | €37.53 |
