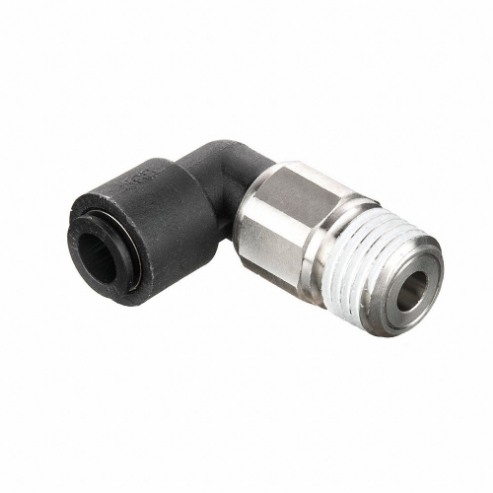

LEGRIS 3159 08 10 Push-to-Connect Fitting, Polymer, BSPT x Push-to-Connect, 8 mm Tube OD
Item: CR8QRVModel: 3159 08 10Cross Ref: 791RD2
7 In Stock
Ships within 2 days via
10.00% off
€70.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | BSPT |
| Fitting Side A Pipe Size | 1/8" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Thread Size | R1/8 |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 17 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 17 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Imperial/Metric |
| Thread Sealant Type | PTFE |
| Thread Size | 1/8" |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.1 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
Product Variants
| Model | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Thread Size | Overall Length | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3159 56 14 | Nylon | 290 psi | 175°F | Push To Connect | MNPT | 1/4" | 1 1/32" | Nylon | €58.02 | |
| 3159 56 11 | Nylon | 290 psi | 175°F | Push To Connect | MNPT | 1/8" | 1 1/32" | Nylon | €56.90 | |
| 3159 04 11 | Nylon | 290 psi | 175°F | Push To Connect | MNPT | 1/8" | 27/32" | Nylon | €55.01 | |
| 3159 10 17 | Polymer | 20 BarG | 176°F | BSPT | Push To Connect | R3/8 | 19 mm | Polymer | €112.26 | |
| 3159 10 13 | Polymer | 20 BarG | 176°F | BSPT | Push To Connect | R1/4 | 19 mm | Polymer | €108.61 | |
| 3159 12 17 | Polymer | 20 BarG | 176°F | BSPT | Push To Connect | R3/8 | 21 mm | Polymer | €110.41 | |
| 3159 12 13 | Polymer | 20 BarG | 176°F | BSPT | Push To Connect | R1/4 | 21 mm | Polymer | €110.41 |
