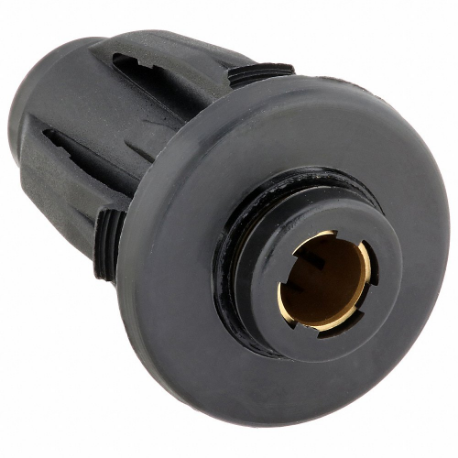

LEGRIS 3156 06 00 Metric Push-to-Connect Fitting, Nylon, Push-to-Connect x Push-to-Connect
Item: CR8QLKModel: 3156 06 00Cross Ref: 791RA6
7 In Stock
Ships within 2 days via
10.00% off
€24.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Length | 38.906 mm |
| Material | Nylon |
| Max. Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 38.90625 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Union |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Color | Specific Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3156 08 00 | 8 mm | 8 mm | 40.125 mm | Nylon | 290 psi | 175°F | Black | Straight Union | €13.99 | |
| 3156 56 00 | 1/4" | 1/4" | 1 1/2" | Nylon | 290 psi | 175°F | Black | Straight Union | €14.66 | |
| 3156 60 00 | 3/8" | 3/8" | 1 15/16" | Nylon | 290 psi | 175°F | Black | Straight Union | €33.87 |
