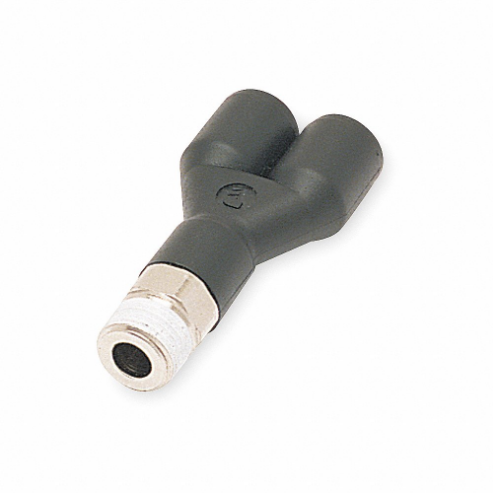

LEGRIS 3148 56 14 Threaded Y Male 1/4 Inch Outer Diameter Psi 290
Item: AB2WWUModel: 3148 56 14Cross Ref: 1PFE4
7 In Stock
Ships within 2 days via
5.00% off
€178.98 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Y Adapter |
| Application | Air, Cutting Fluids, Inert Gases |
| Basic Material | Metal Combination, Plastic |
| Body Finish | Nickel Plated |
| Body Material | Brass, Glass Filled Nylon |
| Color | Black |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Connection Type | Tube x MNPT |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | MNPT |
| Fitting Side A Pipe Size | 1/4" |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outside Dia. | 1/4" |
| Fitting Side C Connection Type | Push-To-Connect |
| Fitting Side C Tube Outside Dia. | 1/4" |
| Hex Size | 14 mm |
| Included Pre-applied Thread Sealant | Yes |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 175°F |
| Max. Pressure | 290 psi |
| Min. Operating Temp. | 4°F |
| Overall Length | 1 9/16" |
| Pipe Size | 1/4" |
| Release Ring Material | Nylon |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Wye |
| System Of Measurement | Imperial |
| Temp. | -4°F to +175°F |
| Tube Size | 1/4" |
| Vacuum | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 1.27 |
| HS code | 7412200035 |
| Country of Origin | MX |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Material | Fitting Side B Tube Outside Dia. | Release Ring Material | Max. Operating Temp. | Min. Operating Temp. | Release Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3148 04 14 | MNPT | Push-To-Connect | Nylon | 5/32" | Nylon | 175°F | 4°F | Button | 10 | €232.25 | |
| 3148 60 14 | MNPT | Push-To-Connect | Nylon | 3/8" | Nylon | 175°F | 4°F | Button | 10 | €236.18 | |
| 3148 60 18 | MNPT | Push-To-Connect | Nylon | 3/8" | Nylon | 175°F | 4°F | Button | 10 | €287.70 | |
| 3148 53 11 | MNPT | Push-To-Connect | Nylon | 1/8" | Nylon | 175°F | 4°F | Button | 10 | €255.98 | |
| 3148 04 11 | MNPT | Push-To-Connect | Nylon | 5/32" | Nylon | 175°F | 4°F | Button | 10 | €179.30 | |
| 3148 08 13 | BSPT | Push To Connect | Polymer | 5/16" | Stainless Steel | 176°F | -4°F | Ring | 1 | €19.96 | |
| 3148 04 10 | - | Push To Connect | Polymer | 5/32" | Stainless Steel | 176°F | -4°F | Ring | 1 | €17.76 |
