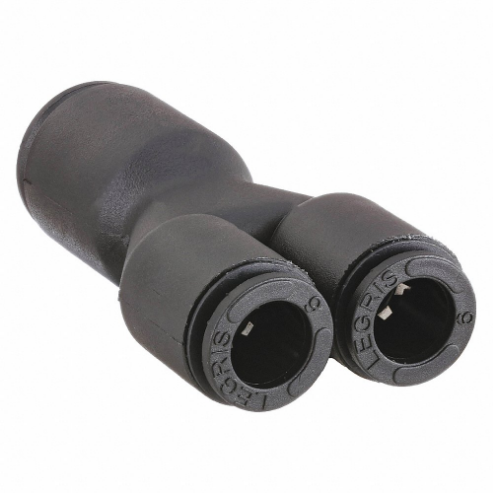

LEGRIS 3140 06 08 Wye Union, Nylon, Push-to-Connect, Black, Metric
Item: CJ3VMZModel: 3140 06 08Cross Ref: 1DEG2
7 In Stock
Ships within 2 days via
5.00% off
€174.66 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Y |
| Application | Air |
| Basic Material | Plastic |
| Body Material | Glass Filled Nylon |
| Color | Black |
| Connection Type | Tube |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side B Tube Outside Dia. | 8 mm |
| Fitting Type | Union Y |
| For Tube Outside Dia. | 6 mm, 8 mm |
| Includes Pre-applied Thread Sealant | Yes |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | 4°F |
| Overall Length | 41 mm |
| System Of Measurement | Metric |
| Temp. | -4°F to +175°F |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | FR |
Product Variants
| Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Included Pre-applied Thread Sealant | Fitting Side B Tube Outside Dia. | Min. Operating Temp. | Fitting Side C Connection Type | Fitting Side C Tube Outside Dia. | Fitting Side A Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3140 56 00 | - | - | - | - | - | - | - | - | 10 | €118.86 | |
| 3140 10 12 | Push-To-Connect | Push-To-Connect | Yes | 12 mm | 4°F | Push-To-Connect | 10 mm | 10 mm | 10 | €232.86 | |
| 3140 04 00 | Push-To-Connect | Push-To-Connect | Yes | 5/32" | 4°F | Push-To-Connect | 5/32" | 5/32" | 10 | €120.26 | |
| 3140 04 06 | Push-To-Connect | Push-To-Connect | Yes | 6 mm | 4°F | Push-To-Connect | 4 mm | 4 mm | 10 | €126.59 | |
| 3140 60 00 | Push-To-Connect | Push-To-Connect | Yes | 3/8" | 4°F | Push-To-Connect | 3/8" | 3/8" | 10 | €237.34 | |
| 3140 08 10 | Push-To-Connect | Push-To-Connect | Yes | 10 mm | 4°F | Push-To-Connect | 8 mm | 8 mm | 10 | €194.30 | |
| 3140 08 00 | Push-To-Connect | Push-To-Connect | Yes | 5/16" | 4°F | Push-To-Connect | 5/16" | 5/16" | 10 | €146.55 |
