LEGRIS 3121 06 10 Push-to-Connect Fitting, Polymer, BSPT x Push-to-Connect, 6 mm Tube OD
Item: CR8QRQModel: 3121 06 10Cross Ref: 791R22
7 In Stock
Ships within 2 days via
5.00% off
€9.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | BSPT |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outside Dia. | 6 mm |
| Fitting Thread Size | R1/8 |
| Included Pre-applied Thread Sealant | Yes |
| Length | 28 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 28 mm |
| Specific Fitting Shape | Straight Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Thread Sealant Type | PTFE |
| Thread Size | 1/8" |
| Vacuum | 755 mm hg |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Operating Pressure | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Thread Size | Max. Operating Temp. | Min. Operating Temp. | Vacuum | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

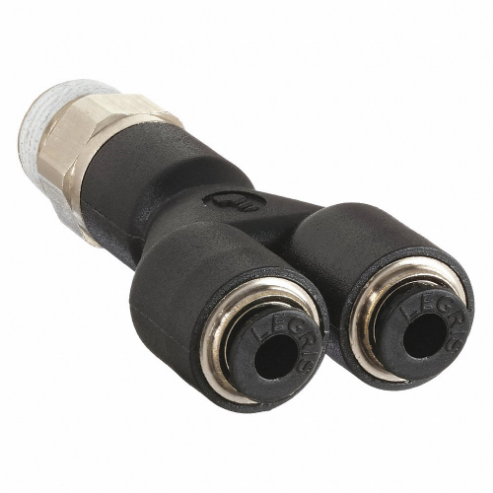

3121 56 14 | 290 psi | Nylon | Push-To-Connect | MNPT | 1/4" | 175°F | 4°F | 28 in. hg | 10 | €87.43 | |
 |

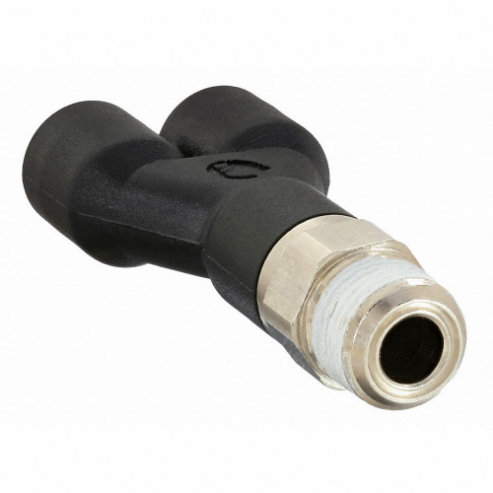

3121 08 14 | 290 psi | Nylon | Push-To-Connect | MNPT | 1/4" | 175°F | 4°F | 28 in. hg | 10 | €90.64 | |
 |

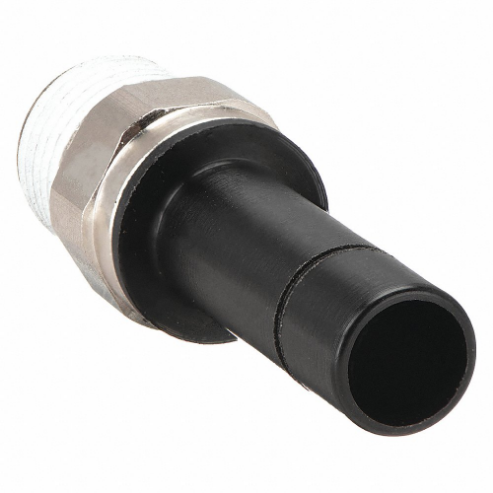

3121 60 14 | 290 psi | Nylon | Push-To-Connect | MNPT | 1/4" | 175°F | 4°F | 28 in. hg | 10 | €98.05 | |
 |

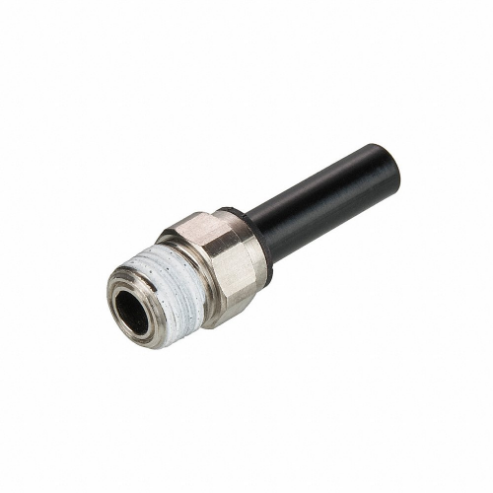

3121 62 22 | 290 psi | Nylon | Push To Connect | - | 1/2" | 175°F | -4°F | 28 in. hg | 1 | €18.18 | |
|
3121 60 18 | 290 psi | Nylon | Push To Connect | - | 3/8" | 175°F | -4°F | 28 in. hg | 1 | €9.53 | |
|
3121 10 21 | 20 BarG | Polymer | BSPT | Push To Connect | R1/2 | 176°F | -4°F | 755 mm hg | 1 | €17.96 | |
|
3121 10 13 | 20 BarG | Polymer | BSPT | Push To Connect | R1/4 | 176°F | -4°F | 755 mm hg | 1 | €16.70 |
