LEGRIS 3109 60 14 Male Elbow, 90 Degree, 3/8 Inch MNPT x Tube
Item: AB2WWFModel: 3109 60 14Cross Ref: 1PFB8
7 In Stock
Ships within 2 days via
5.00% off
€130.85 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow, 90 Degrees |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Basic Material | Metal Combination, Plastic |
| Body Finish | Nickel Plated |
| Body Material | Brass, Glass Filled Nylon |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Connection Type | Tube x MNPT |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 3/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4" |
| Hex Size | 15 mm |
| Included Pre-applied Thread Sealant | Yes |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 175°F |
| Max. Pressure | 290 psi |
| Min. Operating Temp. | 4°F |
| Overall Length | 29/32" |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial |
| Temp. | -4°F to +175°F |
| Tube Size | 3/8" |
| Vacuum | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.31 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| HS code | 7412200035 |
| Country of Origin | MX |
Product Details:
- Special Features: With Thread Sealant
Product Variants
| Product | Model | Max. Operating Pressure | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Side A Tube Outside Dia. | Specific Fitting Shape | Max. Operating Temp. | Min. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3182 04 56 | 290 psi | Nylon | Push-To-Connect | Tube Stem | 5/32" | Elbow Adapter | 176°F | 4°F | 10 | €115.27 | |
 |
3889 04 11 | 435 psi | Stainless Steel | Push-To-Connect | MNPT | 5/32" | Elbow | 302°F | 13°F | 2 | €173.44 | |
 |

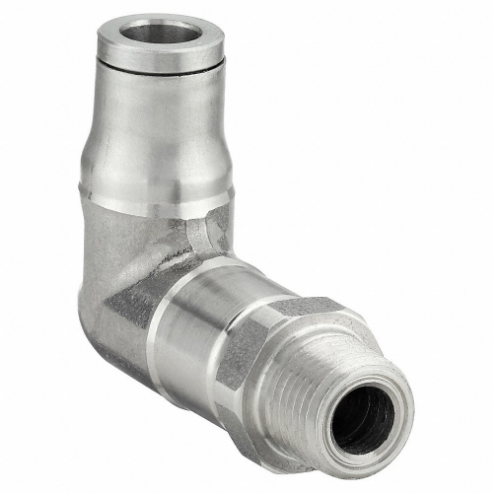

3809 06 11 | 435 psi | Stainless Steel | Push-To-Connect | MNPT | 6 mm | Extended Elbow | 302°F | 13°F | 2 | €157.62 | |
 |
3899 04 20 | 435 psi | Stainless Steel | Push-To-Connect | Munf | 5/32" | Extended Elbow | 302°F | 13°F | 2 | €200.70 | |
 |
0102 08 00 | 1450 psi | Brass | Compression | Compression | 8 mm | 90° Elbow | 250°F | 40°F | 10 | €312.31 | |
|
0102 12 00 | 797 psi | Brass | Compression | Compression | 12 mm | 90° Elbow | 250°F | 40°F | 10 | €677.82 | |
|
0102 06 00 | 2175 psi | Brass | Compression | Compression | 6 mm | 90° Elbow | 250°F | 40°F | 10 | €287.51 |
