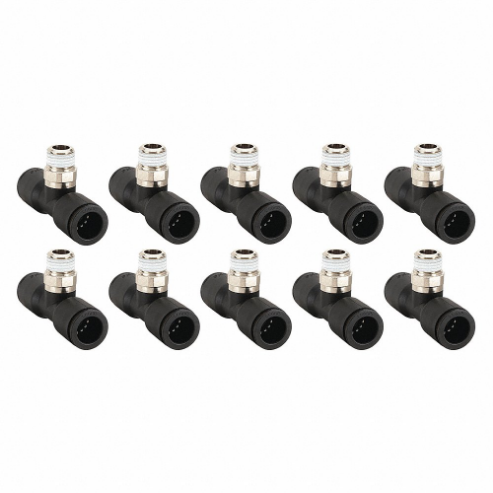

LEGRIS 3108 12 13 Male Branch Tee, Push-to-Connect x Push-to-Connect x MBSPT, 12mm Tube O.D.
Item: CJ2TXVModel: 3108 12 13Cross Ref: 4GWN9
7 In Stock
Ships within 2 days via
5.00% off
€481.20 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Branch Tee |
| Application | Air, Cutting Fluids, Inert Gases |
| Color | Black |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 12 mm |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outside Dia. | 12 mm |
| Fitting Side C Connection Type | MBSPT |
| Fitting Side C Pipe Size | 1/4" |
| Included Pre-applied Thread Sealant | Yes |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 175°F |
| Min. Operating Temp. | 4°F |
| Overall Length | 62 mm |
| Release Ring Material | Nylon |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Adapter Tee |
| System Of Measurement | Imperial, Metric |
| Vacuum | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.7 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
Product Variants
| Model | Fitting Material | Fitting Side B Connection Type | Fitting Side A Connection Type | Release Ring Material | Fitting Side C Connection Type | Max. Operating Temp. | Min. Operating Temp. | Fitting Side B Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3108 08 11 | Nylon | Push-To-Connect | Push-To-Connect | Nylon | MNPT | 175°F | 4°F | 5/16" | 10 | €199.89 | |
| 3108 08 14 | Nylon | Push-To-Connect | Push-To-Connect | Nylon | MNPT | 175°F | 4°F | 5/16" | 10 | €216.19 | |
| 3108 08 18 | Nylon | Push-To-Connect | Push-To-Connect | Nylon | MNPT | 175°F | 4°F | 5/16" | 10 | €210.48 | |
| 3108 60 22 | Nylon | Push-To-Connect | Push-To-Connect | Nylon | MNPT | 175°F | 4°F | 3/8" | 10 | €292.16 | |
| 3108 04 11 | - | - | - | - | - | - | - | - | 10 | €146.82 | |
| 3108 04 14 | - | - | - | - | - | - | - | - | 10 | €185.27 | |
| 3108 53 11 | Nylon | Push-To-Connect | Push-To-Connect | Nylon | MNPT | 175°F | 4°F | 1/8" | 10 | €145.93 |
