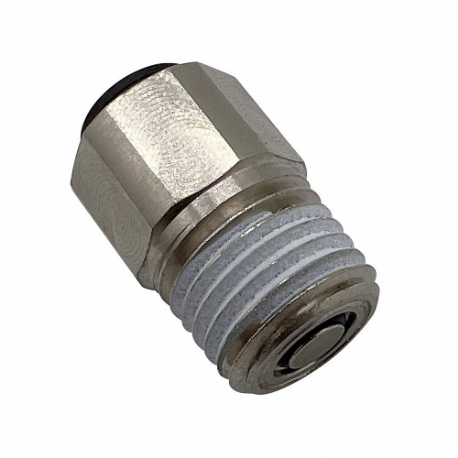

LEGRIS 3091 08 10 Push-to-Connect Fitting, Nickel Plated Brass, BSPT x Push-to-Connect
Item: CN8GANModel: 3091 08 10Cross Ref: 791PV1
7 In Stock
Ships within 2 days via
5.00% off
€29.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | BSPT |
| Fitting Side A Pipe Size | 1/8" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outside Dia. | 8 mm |
| Fitting Thread Size | 1/8" |
| Included Pre-applied Thread Sealant | Yes |
| Length | 31.5 mm |
| Material | Brass |
| Max. Operating Pressure | 10 BarG |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | 32°F |
| Overall Length | 31.5 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Shape | Straight Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Imperial, Metric |
| Thread Sealant Type | PTFE |
| Thread Size | 1/8" |
| Vacuum | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Operating Pressure | Color | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Material | Fitting Thread Size | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3091 56 11 | 290 psi | Black | Nylon | Push To Connect | MNPT | Nylon | 1/8" | 175°F | €31.15 | |
| 3091 60 14 | 290 psi | Black | Nylon | Push To Connect | - | Nylon | 1/4" | 175°F | €58.20 | |
| 3091 60 18 | 290 psi | Black | Nylon | Push To Connect | - | Nylon | 3/8" | 175°F | €62.58 | |
| 3091 04 11 | 290 psi | Black | Nylon | Push To Connect | MNPT | Nylon | 1/8" | 175°F | €37.92 | |
| 3091 06 10 | 10 BarG | Silver | Brass | BSPT | Push To Connect | Brass | 1/8" | 158°F | €26.92 | |
| 3091 08 13 | 10 BarG | Silver | Brass | BSPT | Push To Connect | Brass | 1/4" | 158°F | €32.57 | |
| 3091 56 14 | 290 psi | Black | Nylon | Push To Connect | - | Nylon | 1/4" | 175°F | €33.01 |
