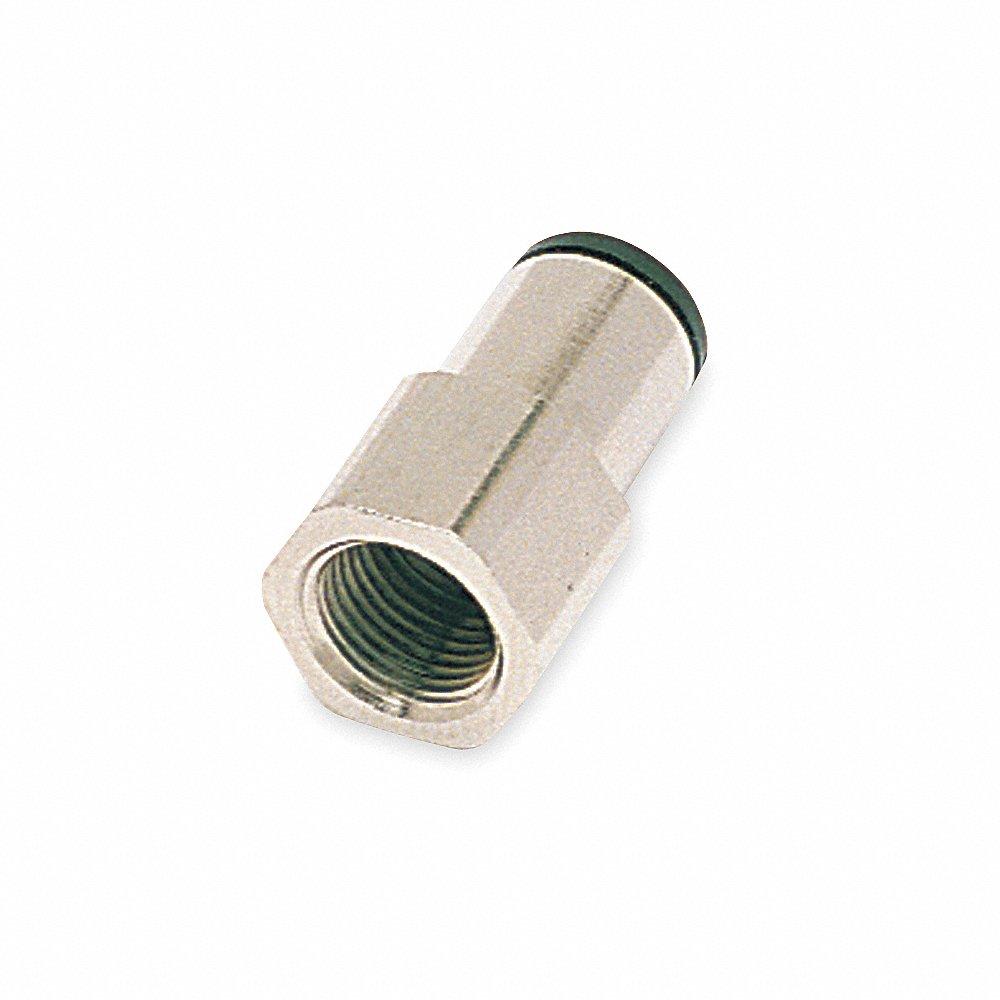

LEGRIS 3014 60 22 Female Adapter, Push-to-Connect x FNPT, 3/8 Inch Tube O.D., 1/2 Inch Pipe Size
Item: CJ2DRYModel: 3014 60 22Cross Ref: 5WTH0
7 In Stock
Ships within 2 days via
10.00% off
€421.74 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Adapter |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/2" |
| Fitting Thread Size | 1/2" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 1 17/32" |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Fitting Side A Connection Type | Fitting Side B Connection Type | Release Type | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Side B Pipe Size | Fitting Thread Size | Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3014 53 14 | Push-To-Connect | FNPT | Button | 1/8" | 1 1/16" | 1/4" | 1/4" | Tube x FNPT | 10 | €166.15 | |
|
3014 60 11 | Push-To-Connect | FNPT | Button | 3/8" | 1 7/32" | 1/8" | 1/8" | Tube x FNPT | 10 | €189.38 | |
 |
3014 04 11 | Push-To-Connect | FNPT | Button | 5/32" | 7/8" | 1/8" | 1/8" | Tube x FNPT | 10 | €174.07 | |
|
3014 04 14 | Push-To-Connect | FNPT | Button | 5/32" | 1 1/16" | 1/4" | 1/4" | Tube x FNPT | 10 | €212.20 | |
|
3014 60 18 | Push-To-Connect | FNPT | Button | 3/8" | 1 9/16" | 3/8" | 3/8" | Tube x FNPT | 10 | €275.39 | |
|
3014 60 14 | Push-To-Connect | FNPT | Button | 3/8" | 1 13/32" | 1/4" | 1/4" | Tube x FNPT | 10 | €252.58 | |
 |
3014 53 20 | Push-To-Connect | FUNF | Button | 1/8" | 25/32" | - | - | Tube | 10 | €404.57 |
