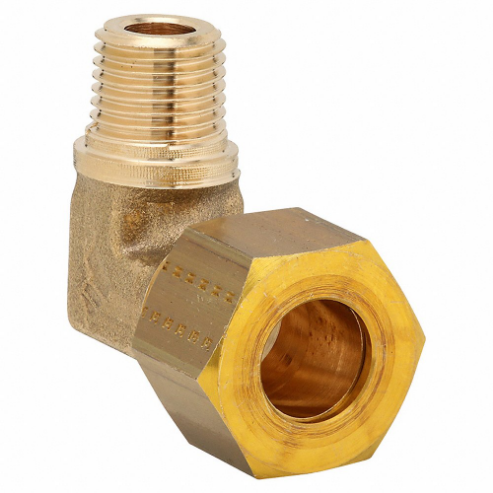

LEGRIS 0109 08 13 Male Elbow, 90 Degrees, Brass, Compression x MBSPT, 1/4 Inch Size Pipe Size, 8 mm Tube OD
Item: CP2DMQModel: 0109 08 13Cross Ref: 46M675
7 In Stock
Ships within 2 days via
10.00% off
€217.52 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow |
| Application | Air, Chemical Fluids, Fuel, Hydraulic Oil, Machining Oil, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 8 mm |
| Fitting Side B Connection Type | MBSPT |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 14 mm |
| Length | 28 mm |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 1450 psi |
| Maximum Operating Pressure | 1450 psi |
| Min. Operating Temp. | 40°F |
| Overall Length | 28 mm |
| Pipe Size | 1/4" |
| Series | METRIC COMPRESSION Series |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Metric |
| Thread Size B | 1/4" |
| Tube Size | 19/64" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 1.87 |
| Ship length (cm) | 2.8 |
| Ship width (cm) | 0.28 |
| Country of Origin | FR |
Product Variants
| Product | Model | Tube Size | Temp. Range | Connection Type | Fitting Material | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side B Pipe Size | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3699 08 13 | 8 mm | -4°F to +302°F | Tube x BSPP | Brass | Elbow Adapter | Push-To-Connect | 1/4" | 21.5 mm | 1 | €26.69 | |
 |
3199 04 13 | 4 mm | -4°F to +175°F | Tube x Male BSPP | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 14 mm | 10 | €221.90 | |
 |
3109 06 13 | 6 mm | -4°F to +175°F | Tube x Male BSPT | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 16 mm | 10 | €128.61 | |
|
3109 12 21 | - | -4°F to +175°F | Tube x Male BSPT | Nylon | Elbow Adapter | Push-To-Connect | 1/2" | 25 mm | 10 | €381.14 | |
|
3199 14 17 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 3/8" | 35.5 mm | 10 | €333.69 | |
 |
3113 08 13 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 33.5 mm | 10 | €133.42 | |
|
3199 12 21 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 1/2" | 31 mm | 10 | €341.21 |
