LEGRIS 0106 06 00 Equal Straight Union, Brass, Compression x Compression
Item: CP2DNRModel: 0106 06 00Cross Ref: 46M684
7 In Stock
Ships within 2 days via
10.00% off
€166.17 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Union |
| Application | Chemical Fluids, Air, Fuel, Hydraulic Oil, Machining Oil, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Hex Size | 11 mm |
| Length | 32 mm |
| Material | Brass |
| Max. Operating Pressure | 2175 psi |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | 40°F |
| Overall Length | 32 mm |
| Series | METRIC COMPRESSION Series |
| Specific Fitting Shape | Straight Connector |
| Specific Pipe Fitting Shape | Union |
| System Of Measurement | Imperial |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 0.32 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 1.6 |
| Country of Origin | FR |
Product Variants
| Model | Hex Size | Max. Operating Pressure | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Overall Length | Max. Operating Temp. | Min. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

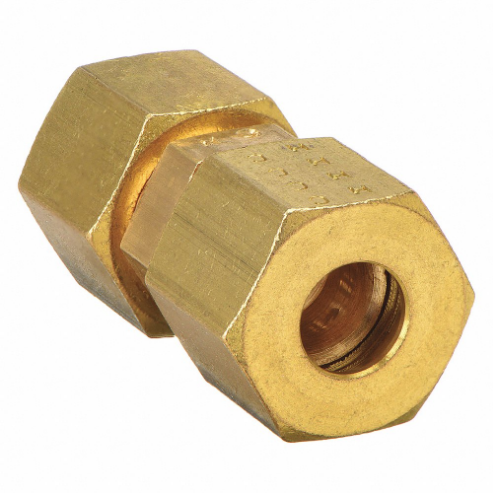

| 0106 04 00 | 10 mm | 3335 psi | 5/32" | 4 mm | 4 mm | 28 mm | 250°F | 40°F | 10 | €166.82 | |

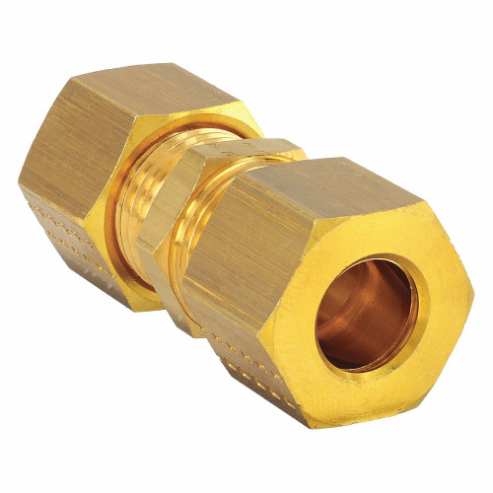

| 0106 12 00 | 19 mm | 797 psi | 15/32" | 12 mm | 12 mm | 42 mm | 250°F | 40°F | 10 | €448.56 | |
| 0106 08 00 | 13 mm | 1450 psi | - | 8 mm | 8 mm | 36 mm | 250°F | 40°F | 10 | €242.31 | |
| 0106 10 00 | 17 mm | 1087 psi | 25/64" | 10 mm | 10 mm | 42 mm | 250°F | 40°F | 10 | €402.96 |
